Steps to mount the unit on DIN rail plate

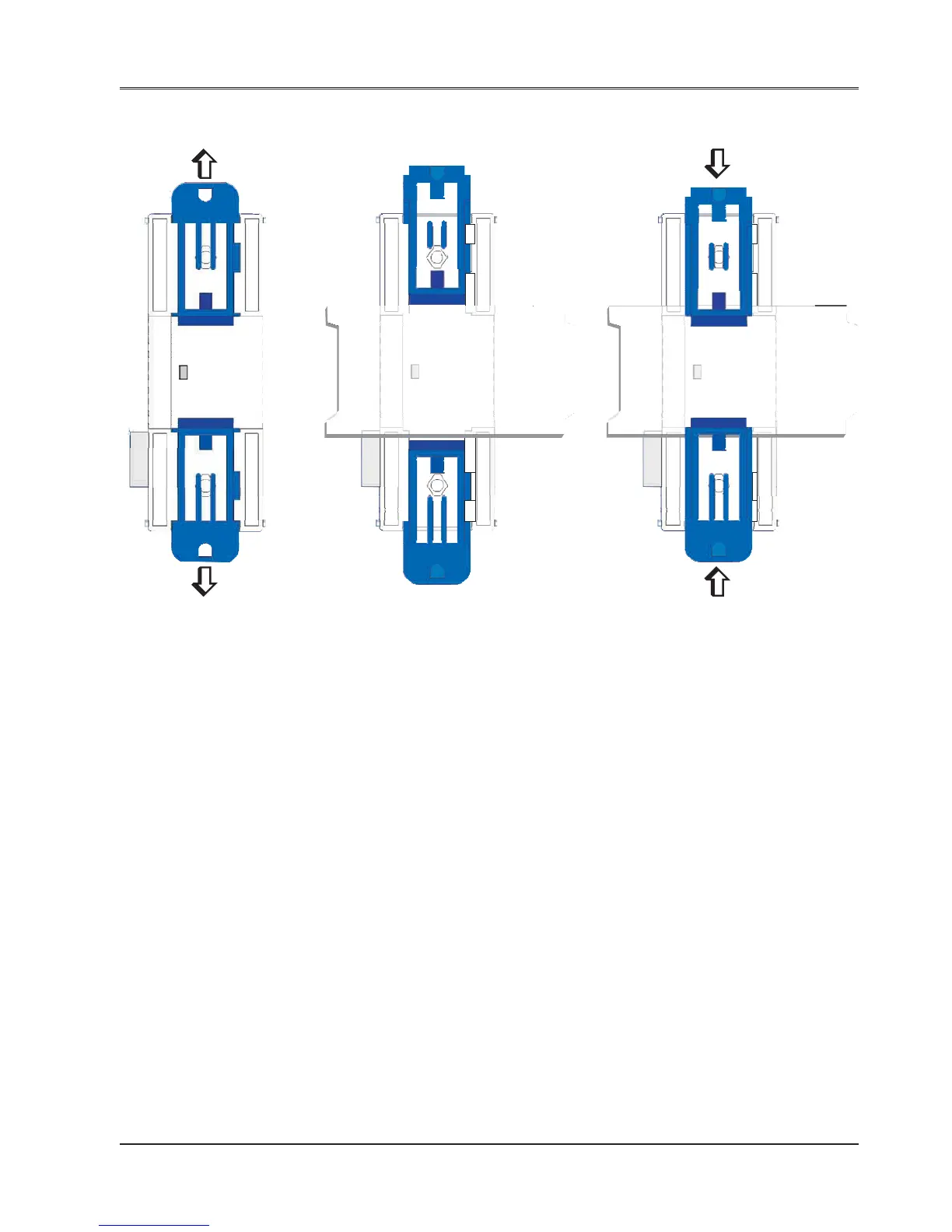

FIG-1 FIG-2 FIG-3
FIG-1 Pull up the sliders provided with the FlexiLogics towards outward direction.
FIG-2 Rest the unit on the DIN rail plate
FIG-3 Pull down the slider again so that unit can fix up with the DIN rail plate
