Special Input and Output
88
Doc No: UMAN\FL\0110
Rev. No.: 1.02B

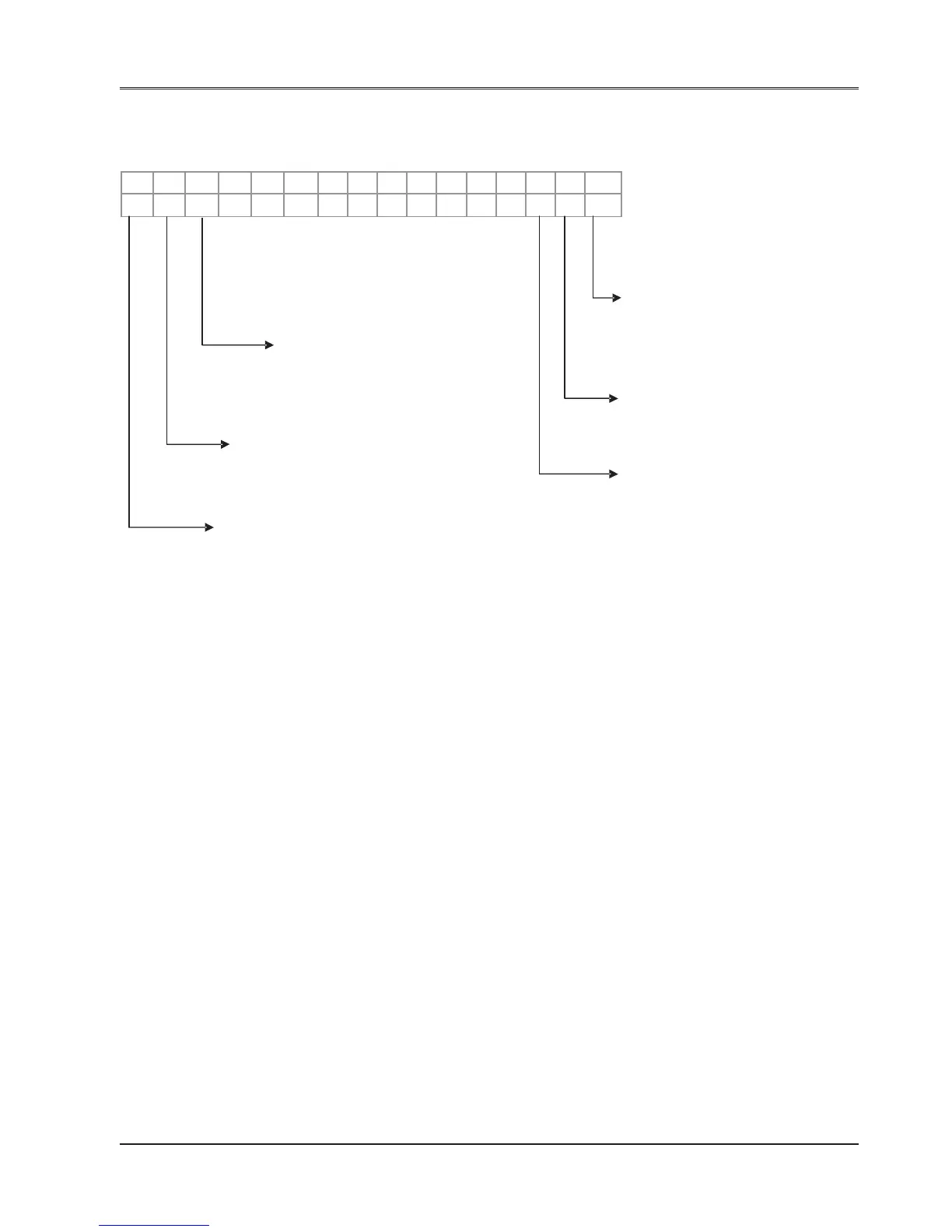

Configuration Register 11 (Pulse / PWM Output): MW0011
FEDCBA9876543210
0 0 0 0000000
Bit 0
< P-OUT and PWM master flag >
0: No use
1: Use
Bit1<P-OUT/PWMselection >
0: PWM
1: P-OUT
Bit 2 < PLS mode >
0: CW/CCW
1: Pulse/Direction (PLS/DIR)
P-OUT / PWM operation error flag
(These are not user setting items)
Bit D < PWM pulse width error >
0: Normal
1: Error
Bit E < PWM ON duty setting error >
0: Normal
1: Error
Bit F < Frequency setting error >
0: Normal
1: Error
