ResMed Astral Series User Manual

Using the Astral device
16
Navigating the menus
The Astral device has four menus accessible via the Menu bar. Each menu is further broken down into
various sub-menus.
Monitors menu
The Monitors menu allows you to view real-time ventilation data and is comprised of three sub-menus:
• Waveforms
• Monitoring
• Trends
Waveforms

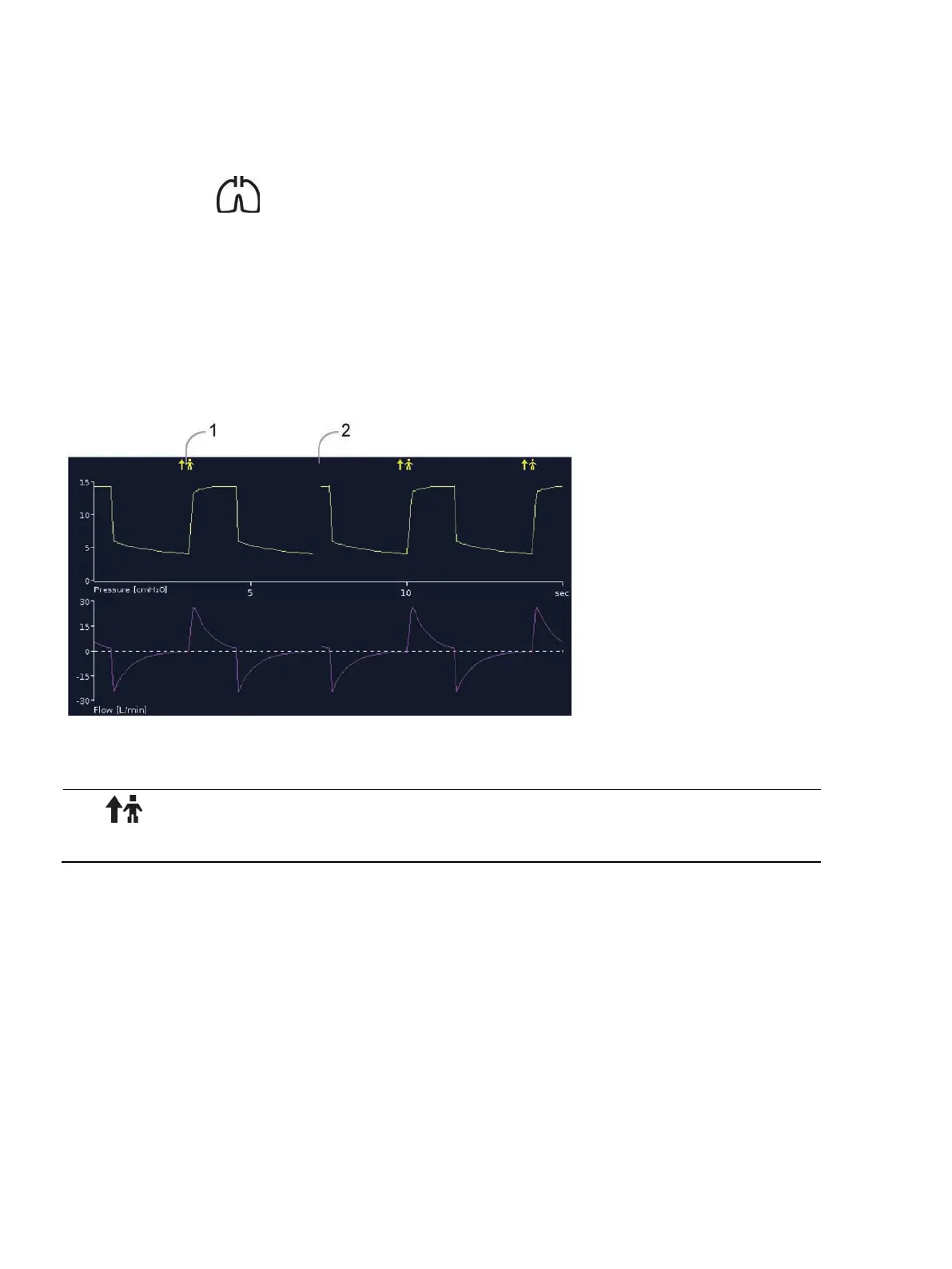

The Waveforms screen displays the last 15 seconds of patient airway pressure and flow in a graph. The
graph updates in real-time and when necessary the vertical axis will auto scale to accommodate changes
in amplitude.
Description
1
Spontaneous trigger breath marker—indicates patient-triggered breath.
2
Break in graph—indicates the current position and moves from left to right.

ResMed Astral Series Specifications

General

Type	Ventilator
Display	color LCD
Connectivity	USB
EPAP	0 to 25 cm H2O
Rise Time	Adjustable
PEEP	0 to 25 cm H2O
FiO2 Monitoring	Yes, with optional oxygen module
Battery Backup	Internal and external battery options
Oxygen Capability	Yes, with optional oxygen module
Alarms	Low battery
Pressure Support	0 to 30 cm H2O
