ResMed Astral Series User Manual

Using the Astral device
18

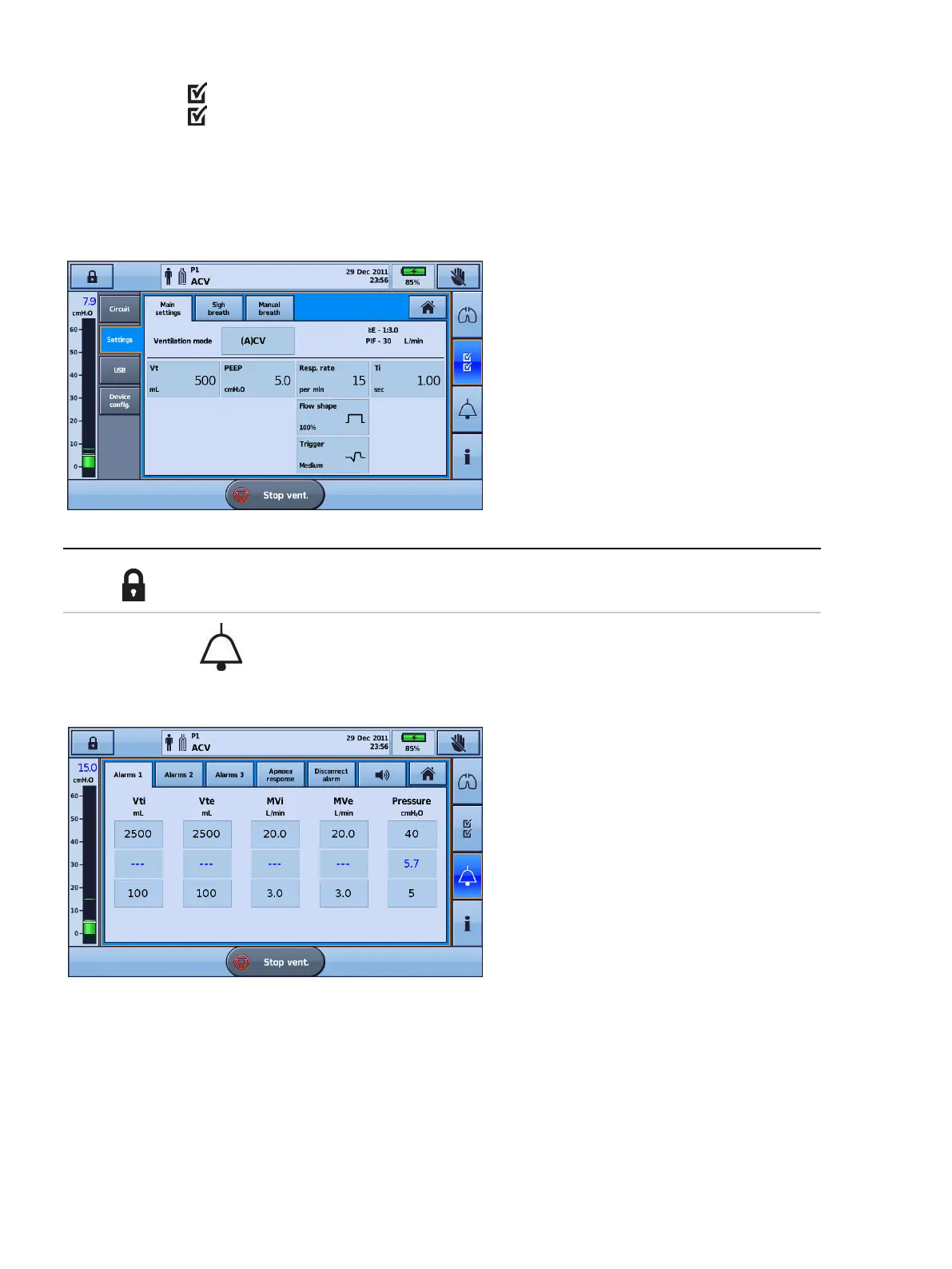

Setup menu
The Setup menu displays four different sub-menus:
• Circuit—to view the circuit
• Settings—to view the ventilation mode and access Manual Breath and Sigh Breath screens
• USB—to save patient data and import/export settings
• Device Config.—to change the device configuration.
Helpful hint!
Therapy and alarm settings can be viewed as 'read only' in Patient mode (ie, with Clinical mode
locked .
Alarms menu
The Alarms menu displays the individual thresholds for each alarm to trigger. Real-time values are
displayed between the upper and lower thresholds.

ResMed Astral Series Specifications

General

Type	Ventilator
Display	color LCD
Connectivity	USB
EPAP	0 to 25 cm H2O
Rise Time	Adjustable
PEEP	0 to 25 cm H2O
FiO2 Monitoring	Yes, with optional oxygen module
Battery Backup	Internal and external battery options
Oxygen Capability	Yes, with optional oxygen module
Alarms	Low battery
Pressure Support	0 to 30 cm H2O
