ResMed Astral Series User Manual

Assembling patient circuits
28

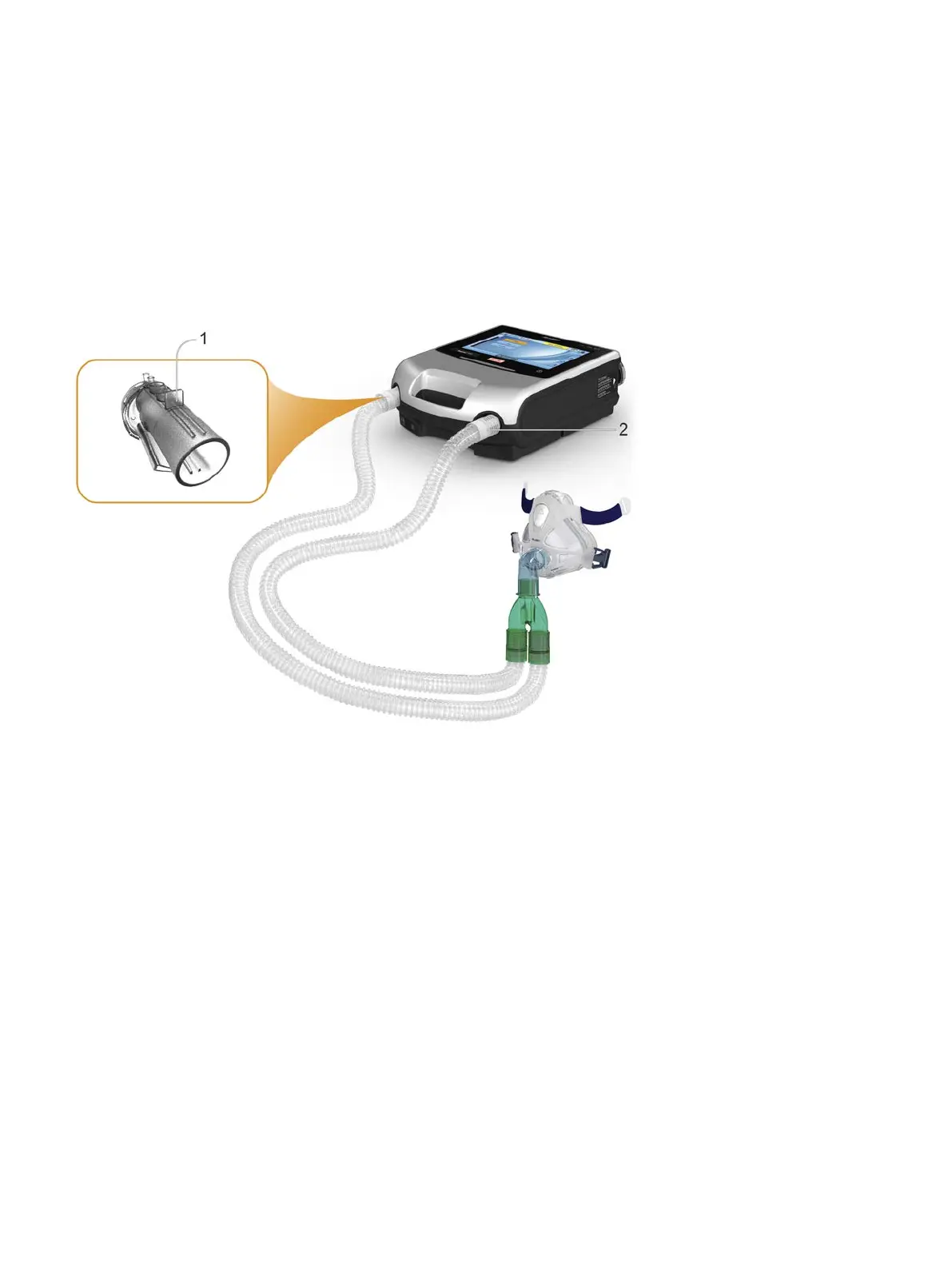

Connecting a double limb circuit (Astral 150 only)
The Astral device measures exhaled air flowing through the double limb circuit adapter. This enables
patient-exhaled tidal volume to be accurately measured and monitored.
To connect a double limb circuit:
1. Ensure the device is fitted with the double limb adapter (otherwise change the adapter).
2. Connect the ends of the air tubing to the inspiratory and adapter ports on the device.
3. Attach any required circuit accessories (eg, humidifier or filter).
4. Select the circuit type and perform a Learn Circuit.
5. Attach a patient interface (eg, mask) to the end of the air tubing.

ResMed Astral Series Specifications

General

Type	Ventilator
Display	color LCD
Connectivity	USB
EPAP	0 to 25 cm H2O
Rise Time	Adjustable
PEEP	0 to 25 cm H2O
FiO2 Monitoring	Yes, with optional oxygen module
Battery Backup	Internal and external battery options
Oxygen Capability	Yes, with optional oxygen module
Alarms	Low battery
Pressure Support	0 to 30 cm H2O
