ResMed Astral Series User Manual

Assembling patient circuits
English 27

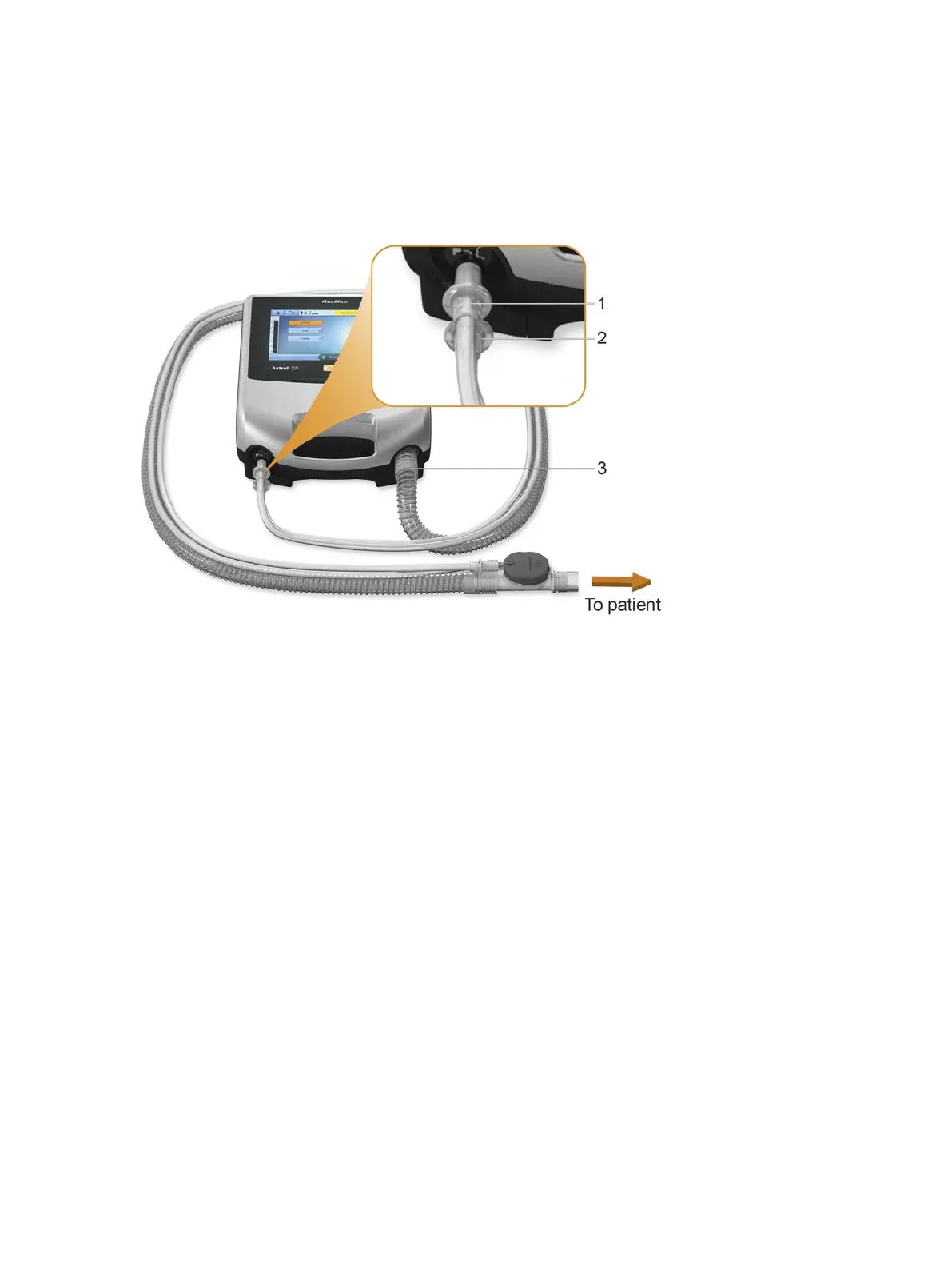

To connect a standard single limb valved circuit to the Astral:
1. Connect the Proximal pressure line to the upper connector of the Astral device single limb adapter.
2. Connect the PEEP control line to the lower connector of the Astral device single limb adapter.
3. Connect the air tubing to the inspiratory port of the device.
4. Attach any required circuit accessories (eg, humidifier or filter).
5. Select the circuit type and perform a Learn Circuit.
6. Attach a patient interface (eg, mask) to the connector on the pneumatic valve.

ResMed Astral Series Specifications

General

Type	Ventilator
Display	color LCD
Connectivity	USB
EPAP	0 to 25 cm H2O
Rise Time	Adjustable
PEEP	0 to 25 cm H2O
FiO2 Monitoring	Yes, with optional oxygen module
Battery Backup	Internal and external battery options
Oxygen Capability	Yes, with optional oxygen module
Alarms	Low battery
Pressure Support	0 to 30 cm H2O
