1 Overview
• Quick access to the manual mode by means of the slide switch
• For all optional functions of the DeltaSol
®
MX, DeltaSol
®
BX Plus
and DeltaTherm
®
HC
• Easy connection via VBus
®
• Selection and conguration of the functions on the controller
Technical data
Inputs: 6 Pt1000, Pt500 or KTY temperature sensors
Outputs: 4 semiconductor relays and 1 potential-free relay
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
4 (1) A 24 V
⎓
/ 240 V~ (potential-free relay)
Total switching capacity: 4 A 240 V~
Power supply: 100 … 240 V~ (50 … 60 Hz)
Supply connection: type Y attachment
Standby: 0.30 W
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus
®
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting
Indication / Display: LC display, 7-segment display
Operation: 3 push buttons and 1 slide switch at the front of the housing
Ingress protection: IP 20 / EN 60529
Protection class: II
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 144 × 208 × 43 mm

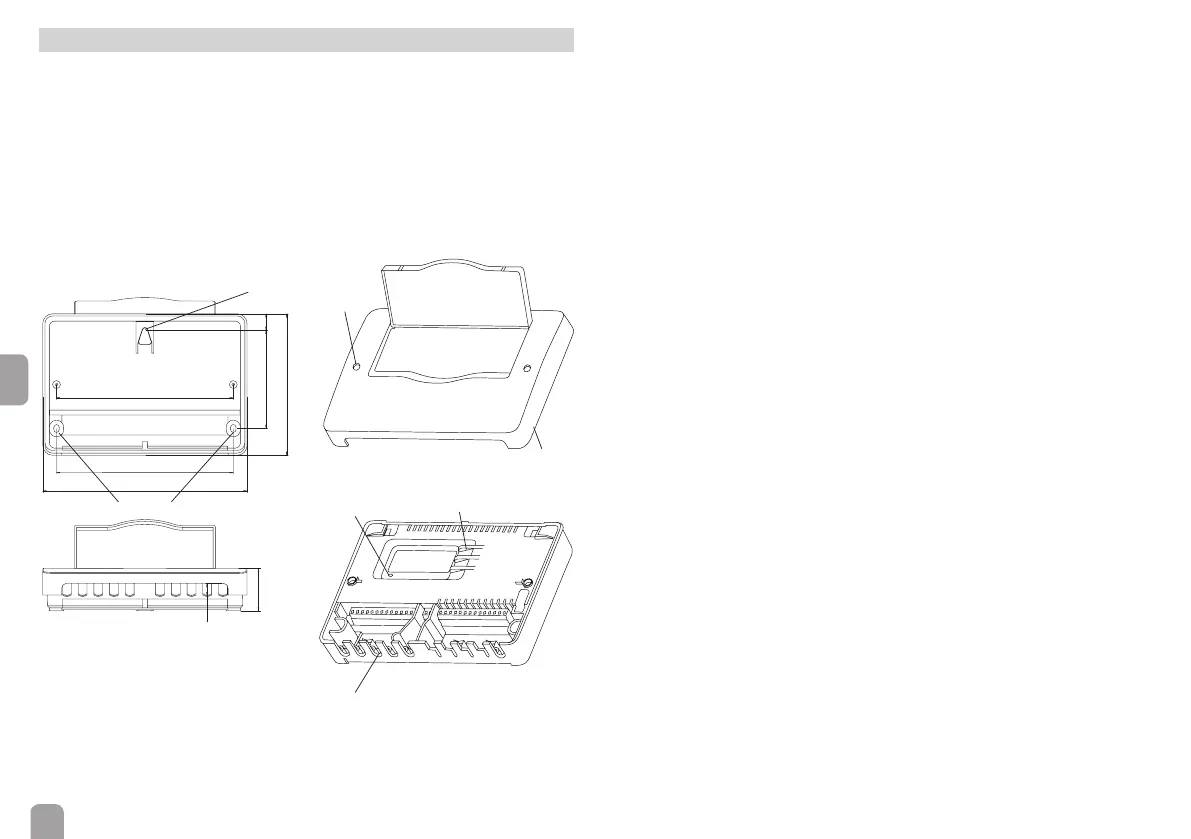

crosshead
screw
cover
cable conduits
with strain relief
push buttons
slide switch
12.5
180
180
100 144
208
16.75
43.3
upper fastening
lower fastening
