Retsch SR 300 - Setting up on Base Frame

First Commissioning
20
Fig. 4: Table mounting
 Bolt the SR 300 to the tabletop by means of four M8 screws of the required length (not
supplied). Use the second (LP2) and fourth pair of holes (LP4) of the U-profiles for this
purpose.
5.2 Setting up on Base Frame
 The base frame for the SR 300 is available as an optional accessory from your supplier or
from Retsch GmbH directly.

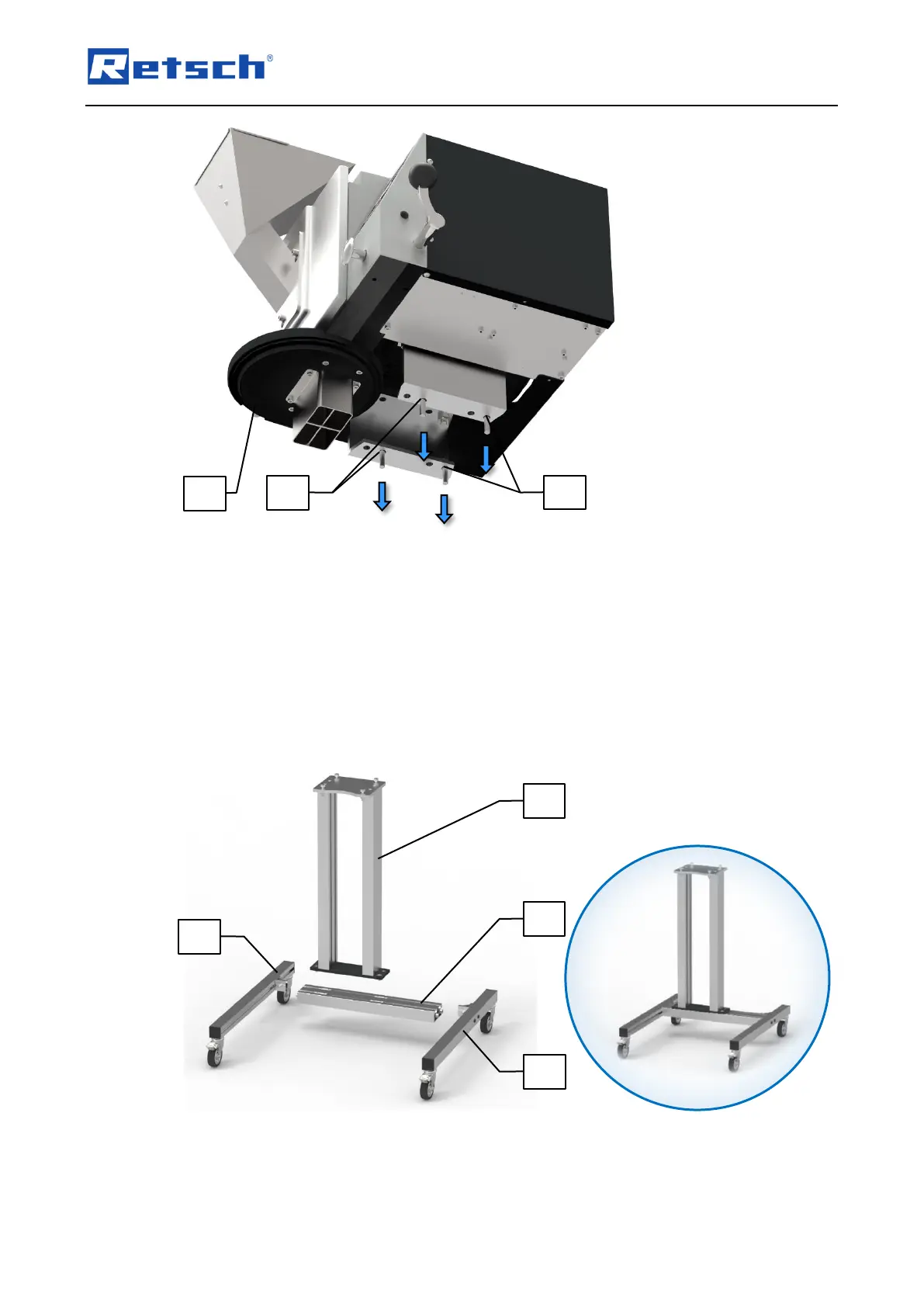

Fig. 5: Pre-assembled component parts of the base frame
The following component parts are already pre-assembled for an easier assembly of the base
frame:
UG2
UG1
UG3
UG4
AF
LP2
LP4
