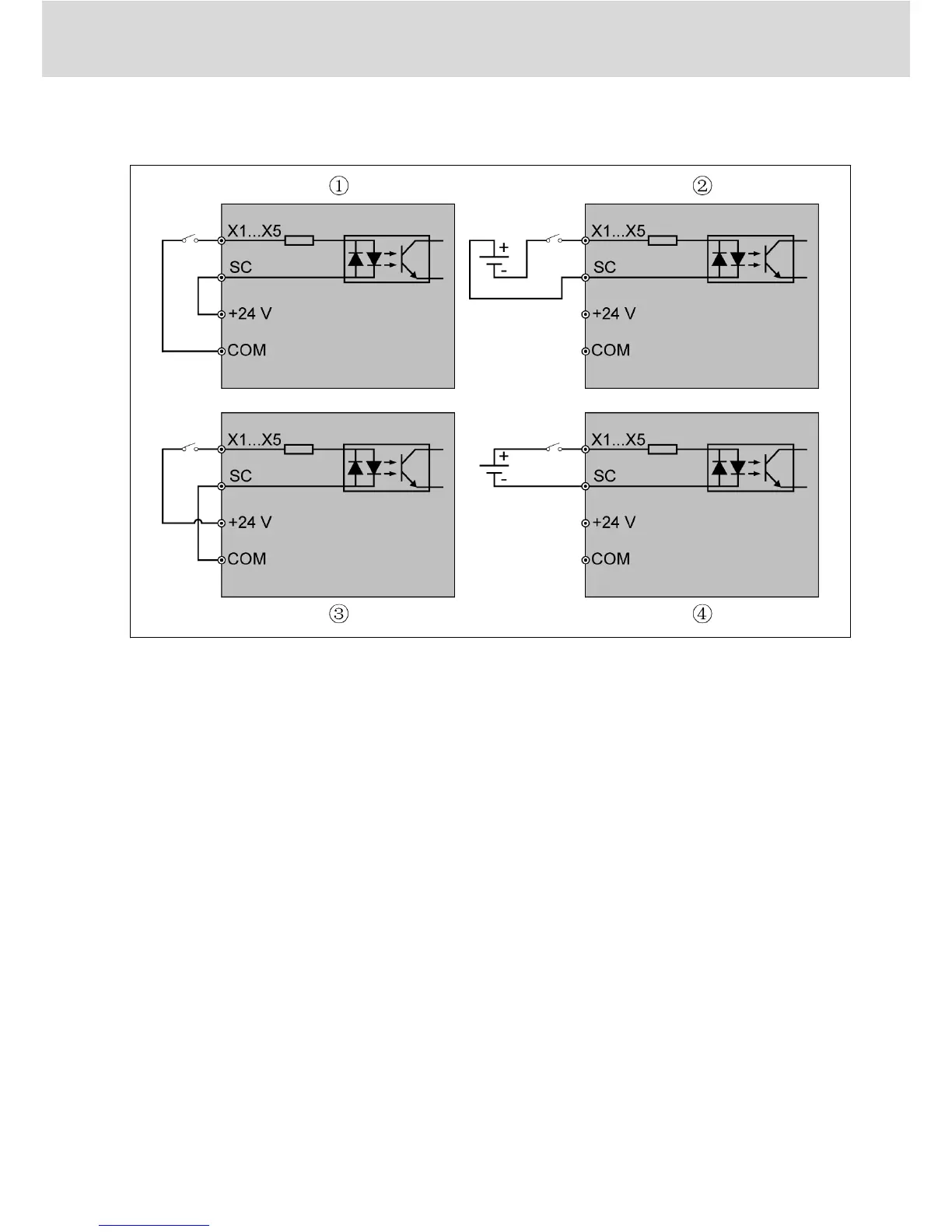

Digital input NPN / PNP wiring
①
NPN wiring with int
ernal power supply
②
NPN wiring with ext
ernal power supply
③
PNP wiring with int
ernal power supply
④
PNP wiring with ext
ernal power supply
Fig. 2-6:
Digital input NPN / PNP wiring
EFC 3610 / EFC 5610
Bosch Re
xro
th AG
Electric Installation
DOK
-RCON03-EFC-X610***-QU11-EN-P
23/
87
28
30
Table of Contents
Default Chapter
3
Table of Contents
3
1 Mechanical Installation
7
Visual Check
7
Ambient Conditions
7
Installation Conditions
8
Figures and Dimensions
9
Figures
9
Dimensions
13
DIN Rail Mounting
15
Use of Thermal Compound Paste (Only for Cold Plate Models)
16
2 Electric Installation
17
Overview of Electric Connections
17
Cable Specifications
19
Power Connection
19
Cable Specification for International Without USA / Canada
19
Cable Specification for USA / Canada
21
Control Signal Connection
23
Terminals
24
Power Terminals
24
Control Terminals
26
Control Terminals Figure
26
Control Terminals Description
27
Digital Input NPN / PNP Wiring
29
Digital Output Do1A, Do1B Load Pull-Up / Pull-Down Wiring
30
Analog Input Terminals (AI1, AI2, EAI, +10 V, +5 V, Earth and GND)
31
Relay Output Terminals
32
3 Start-Up
33
LED Panel and Dust Cover
33
LED Panel
33
Dust Cover
34
LED Indicator
35
Operating Descriptions
36
LCD Panel
37
LCD Panel Introduction
37
Operating Example
38
Start-Up Procedure
39
Checking before Power-On
39
Checking after Power-On
39
Checking Start-Up Parameters
39
Control the Motor
41
Motor Parameters Auto-Tuning
42
Parameter List
45
Terminology and Abbreviation in Parameter List
45
Group B: System Parameters
46
B0: Basic System Parameters
46
Group C: Power Parameters
47
C0: Power Control Parameters
47
C1: Motor and System Parameters
49
C2: V/F Control Parameters
51
C3*: Vector Control Parameters
53
Group E: Function Control Parameters
55
E0: Set Point and Control Parameters
55
E1: Input Terminal Parameters
58
E2: Output Terminal Parameters
61
E3: Multi-Speed and Simple PLC Parameters
64
E4: PID Control Parameters
67
E5: Extended Function Parameters
68
E8: Standard Communication Parameters
69
E9: Protection and Error Parameters
70
Group F0: ASF Parameters
72
Group H: Extension Card Parameters
73
H0: Extension Card General Parameters
73
H1: Communication Card Parameters
74
H8: I/O Card Parameters
77
H9: Relay Card Parameters
82
Group U: Panel Parameters
84
U0: General Panel Parameters
84
U1: LED Panel Parameters
84
U2: LCD Panel Parameters
85
Group D0: Monitoring Parameters
87
4 Diagnosis
89
Display of LED Characters
89
Status Code
89
Error Code
91
