REXROTH EFC 3610 Series Quick Start Guide

2.3 Terminals
2.3.1 Power Terminals
(1) 1P 200 VAC 0K40...2K20
(2) 3P 400 VAC 0K40...4K00
(3) 3P 400 VAC 5K50...22K0
(4) 3P 400 VAC 30K0...90K0
(5) 3P 400 VAC 110K...132K
1P AC: Single phase AC power supply
3P AC: Three phases AC power supply
M: For three phases motor connection

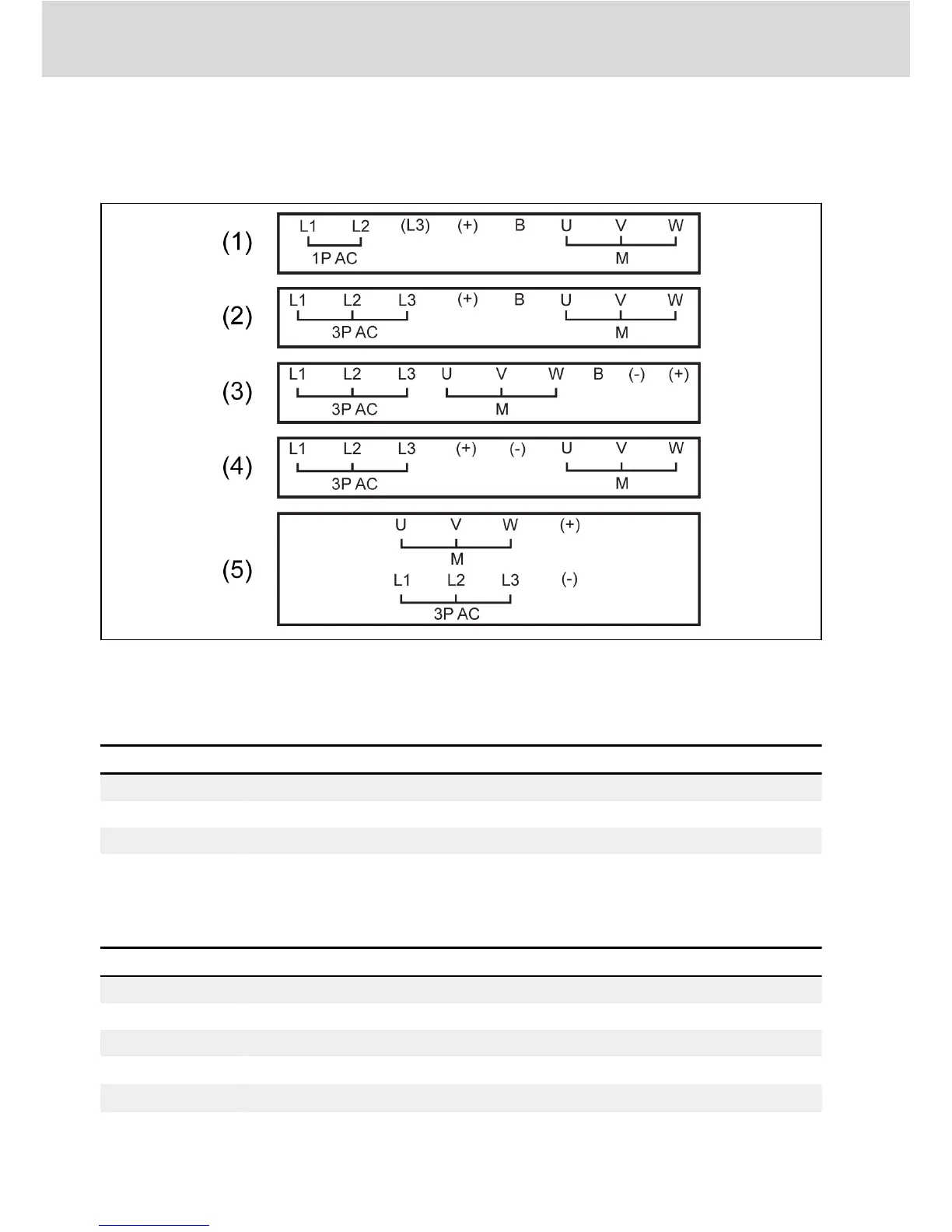

Fig. 2-3: Power terminals
Terminal Description
L1, L2 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(+)
①
DC positive bus terminal
Tab. 2-5: 1P 200 VAC power terminals description
Terminal Description
L1, L2, L3 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(-)
①
DC negative bus terminal (only available with models of 5K50 and above)
(+)
①
DC positive bus terminal
Tab. 2-6: 3P 400 VAC power terminals description
Bosch Rexroth AG
Electric Installation
EFC 3610 / EFC 5610
18/87
DOK-RCON03-EFC-X610***-QU11-EN-P
