1.4.3 DIN Rail Mounting
Besides wall mounting with screws, Frequency Converter EFC x610 also pro-
vides DIN rail mounting for models 0K40...7K50 (does not include cold plate
models).
A Mounting buckle
B Mounting rail
C Disassembly handle

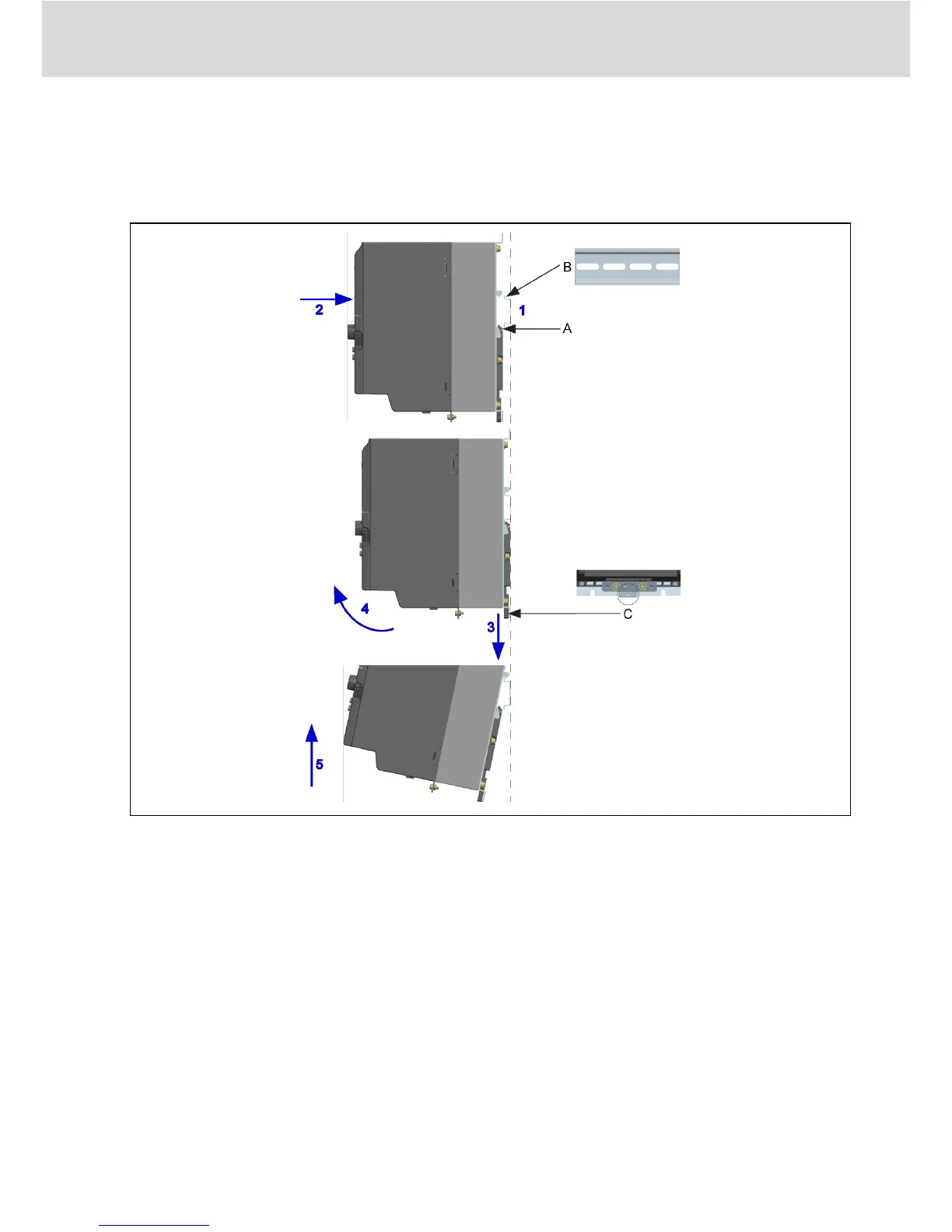

Fig. 1-9: DIN rail mounting and disassembly
Mounting steps:
1: Hold the frequency converter and keep component A and the lower edge of
component B at the same position level.
2: Push the frequency converter horizontally till a buckle sound indicates a suc-
cessful mounting.
Disassembly steps:
3: Pull down component C and hold it.
4: Rotate the frequency converter to an appropriate angle as the arrow indi-
cates.
5: Lift the frequency converter upwards.
