2 Electric Installation
2.1 Overview of Electric Connections

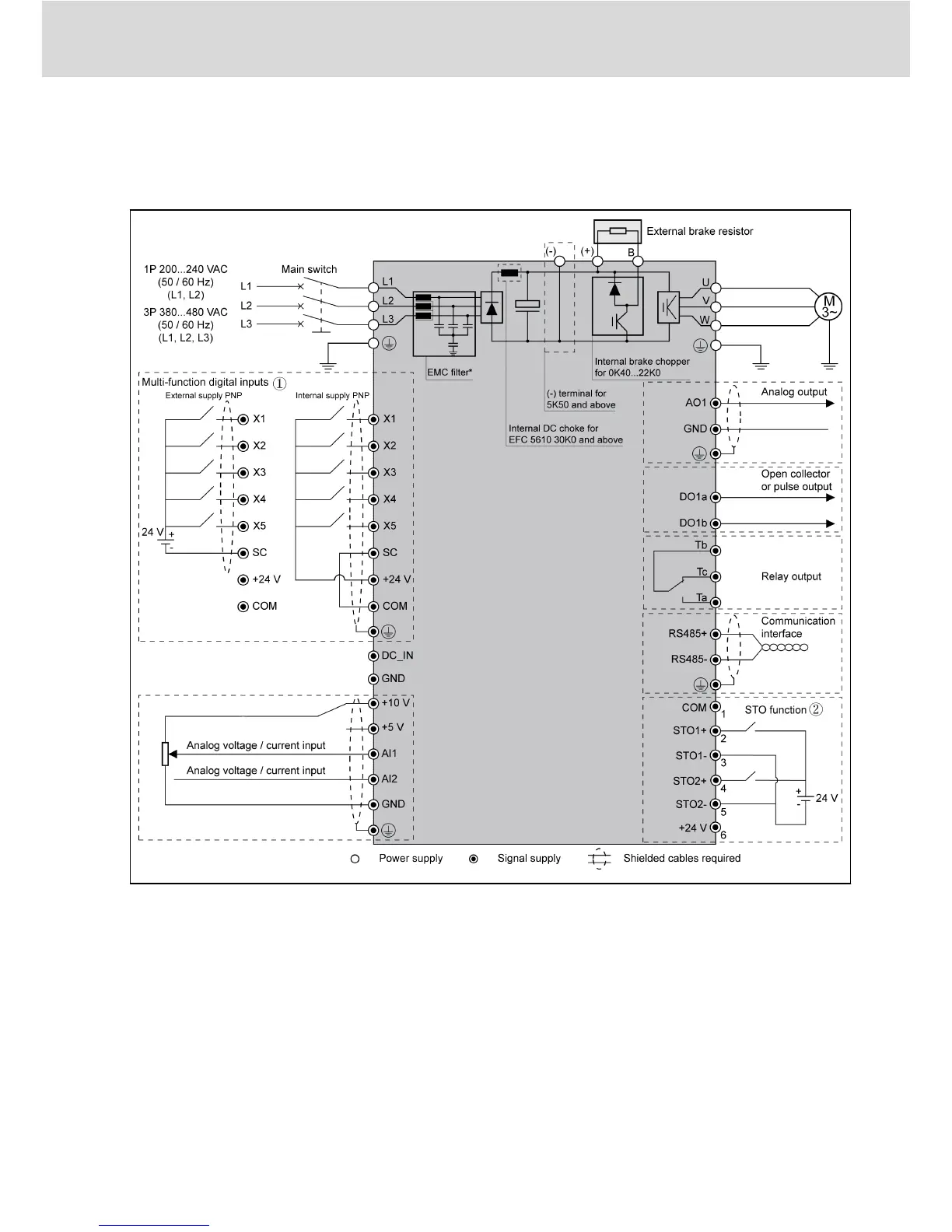

Fig. 2-1: Wiring diagram
EFC 3610 / EFC 5610
Bosch Rexroth AG
Electric Installation
DOK-RCON03-EFC-X610***-QU11-EN-P
11/87
