Analog input terminals (AI1, AI2, EAI, +10 V, +5 V, Earth and GND)

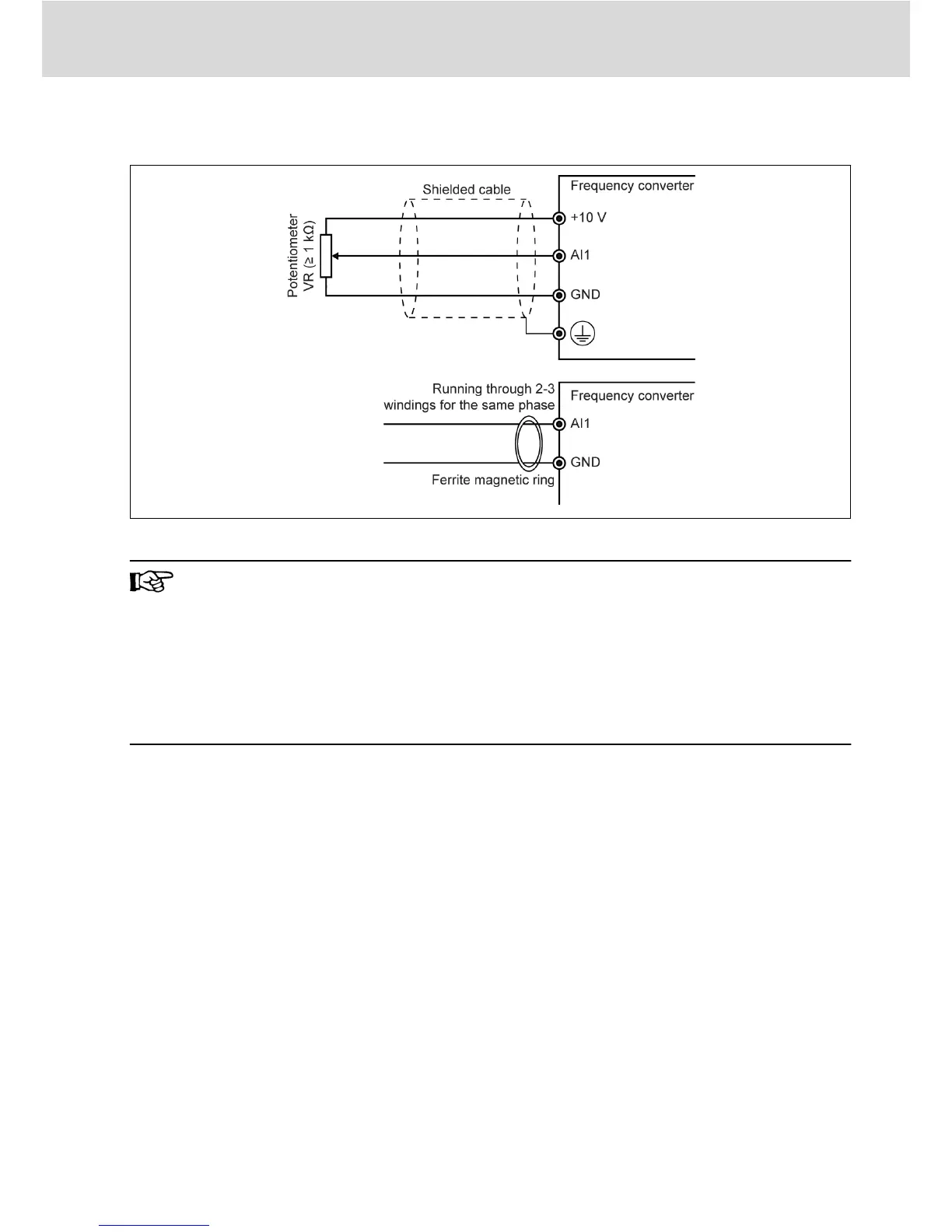

Fig. 2-8: Analog input terminals
● The figure for AI2 and +5 V is similar as the above figure.
● Incorrect operation may occur due to interference on the analog
signal. In such cases, connect a ferrite magnetic ring at the input
side of the analog signal, as shown above.
● The above figure is also valid for analog input EAI on I/O card.
● When analog current input function is applied, the supply voltage
of analog input terminal can not exceed +5 V.
EFC 3610 / EFC 5610 Bosch Rexroth AG
Electric Installation
DOK-RCON03-EFC-X610***-QU11-EN-P
25/87
