Output for controlling the motor holding brake (X156.7/8)
Output current (A) A n.s. 1
Continuous power overvoltage protection (B) W n.s. 1,5
Energy absorption (B) Ws n.s. 3
Order type of cable RKL4305
Allowed length m n.s. 7,5
Fig.5-3: X156, Motor
5.2.6 SERCOS Address Selector Switches
High electrical voltage! Danger to life by elec‐
tric shock!
Before examining the address which has been set, always switch power off
and then remove connector.
The SERCOS address must be set at each KSM/KMS. To do this, use the
two turn-switches S5 and S4 which are to be found under the connector cov‐
ers of X3.1 and X3.2.
S5 SERCOS address selector switch (×10)
S4 SERCOS address selector switch (×1)

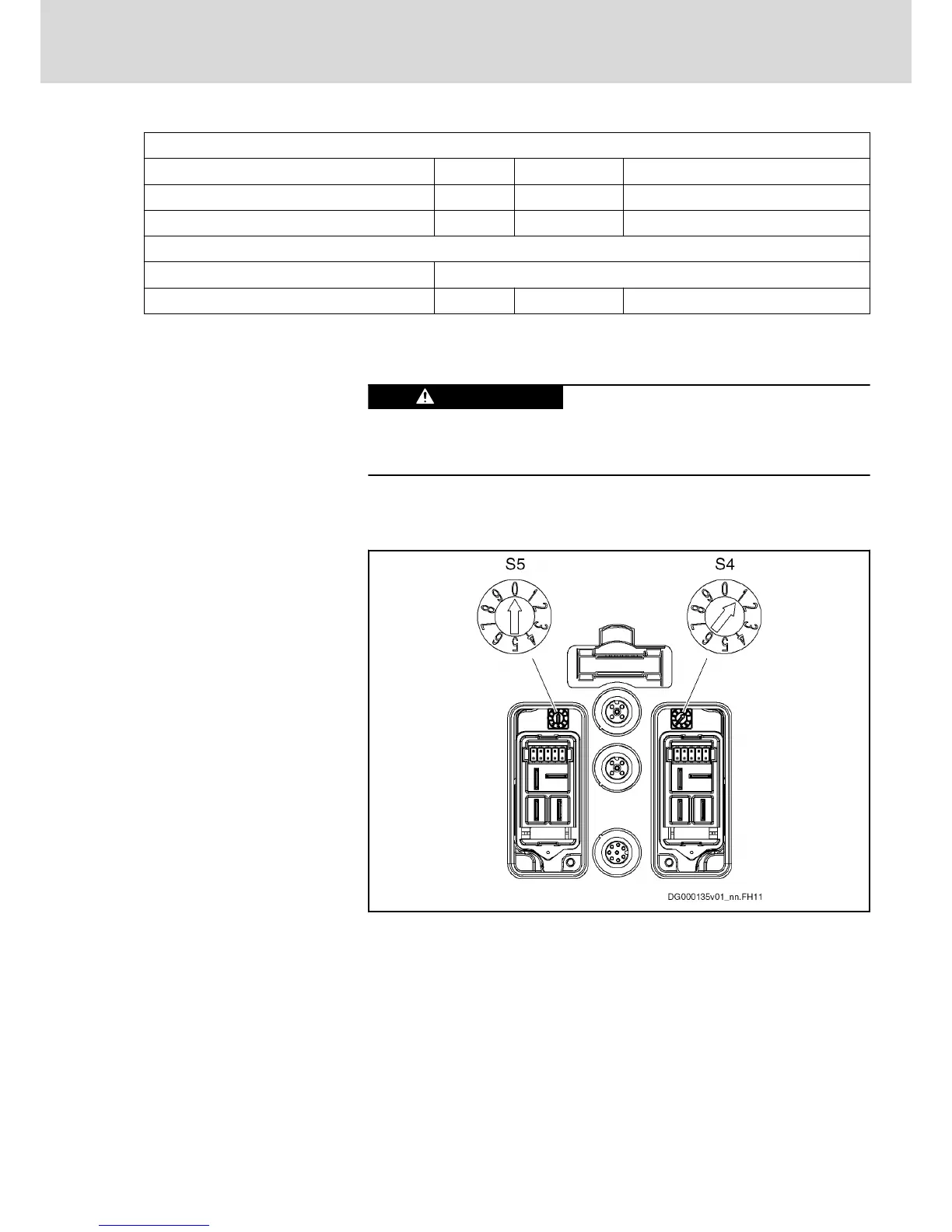

Fig.5-4: SERCOS Address Selector Switches
