3.1 Preparation when usin g Suctio n Pump 2207
WARNING!
Danger of life threatening embolism due to wrong connection of pump
tubes.
When using a peristaltic suction pump (e.g. Suction Pump 2207) no air or
liquid must be discharged from the sonotrode tip. The sonotrode tube only
serves for evacuation purposes. Strictly follow the instruction manual of the
suction pump used.
.
IMPORTANT!
The ultrasound generator is designed for use while the irrigation fluid is aspirated
and pumped off. When setting up the Ultrasound Generator make sure that a suit-
able suction device is available.
The suction device should provide a continous adjustable vacuum of up to --0.6
bar. We recommend using a suction device adapted to the Ultrasound Generator
(e.g. Suction Pump 2207).

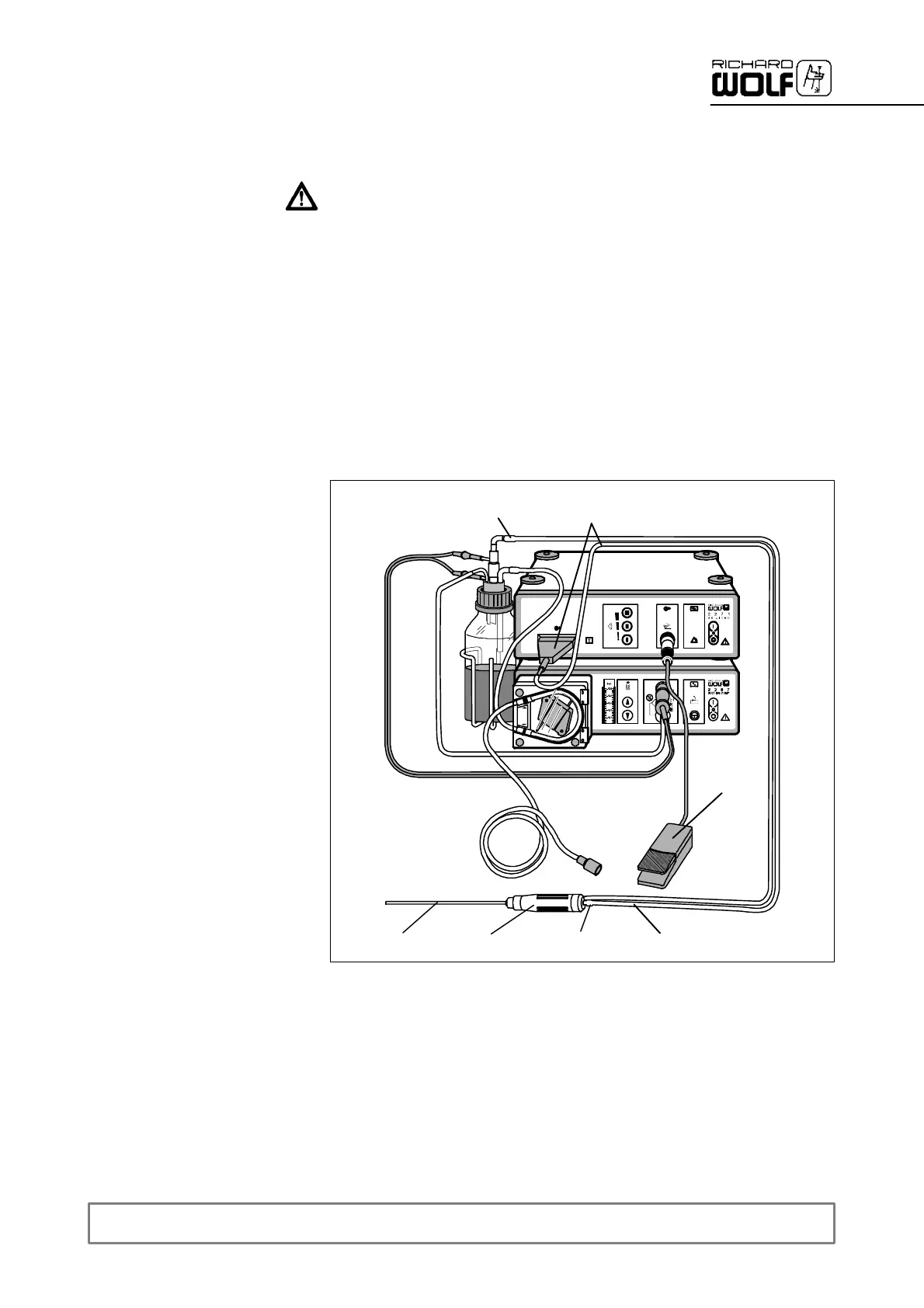

3.1.1 Ultrasound Generator with “Suction Pump 2207”
21
19
15
16
18
17
14
3.1.2 Legend
14 Footswitch with cable 18 Suction connector
15 Transducer 19 Suction tube
16 Sonotrode 21 Suction connector of fluid trap
17 Transducer cable with connection
