Richard Wolf 2271 - Connection to the RIWO NET SYSTEM

20
GA--A 181

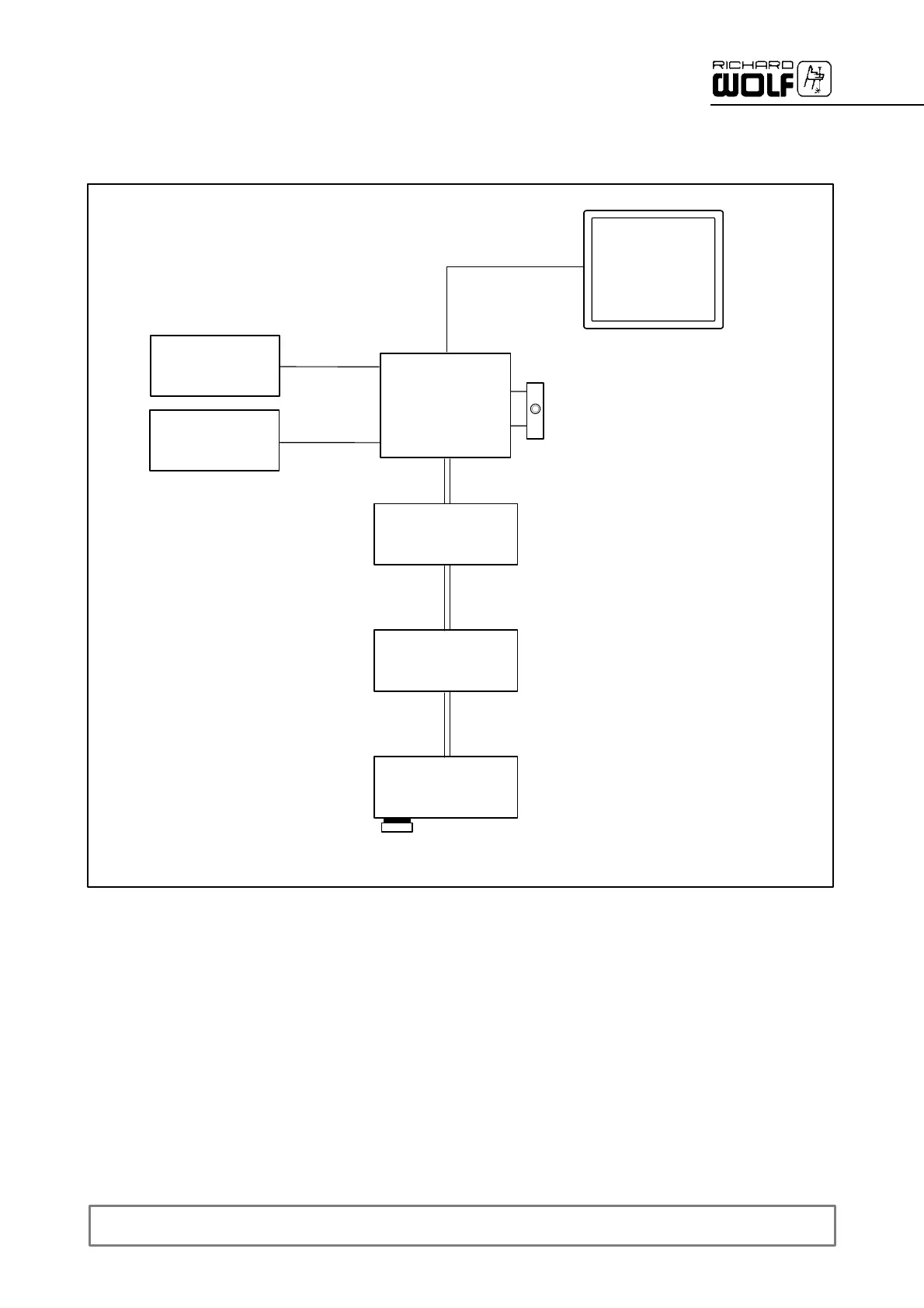

6.3 Connection to the RIWO NET SYSTEM
Touch--Screen
Monitor
CAN--BUS
Control computer
RS--232
RS--232
CAN--BUS termination
e.g.
Ultrasound
generator
e.g.
Light projector
e.g.
Camera
z.B.
Video printer
z.B.
Video recorder
RIWO CONTROL
Connection of headset microphone
CAN--BUS
CAN--BUS
.
IMPORTANT!
The device system must be operated via a “Separating transformer with DC coupling”.
.
IMPORTANT!
The last device in the CAN--BUS chain requires a termination using the supplied terminating resistor.
