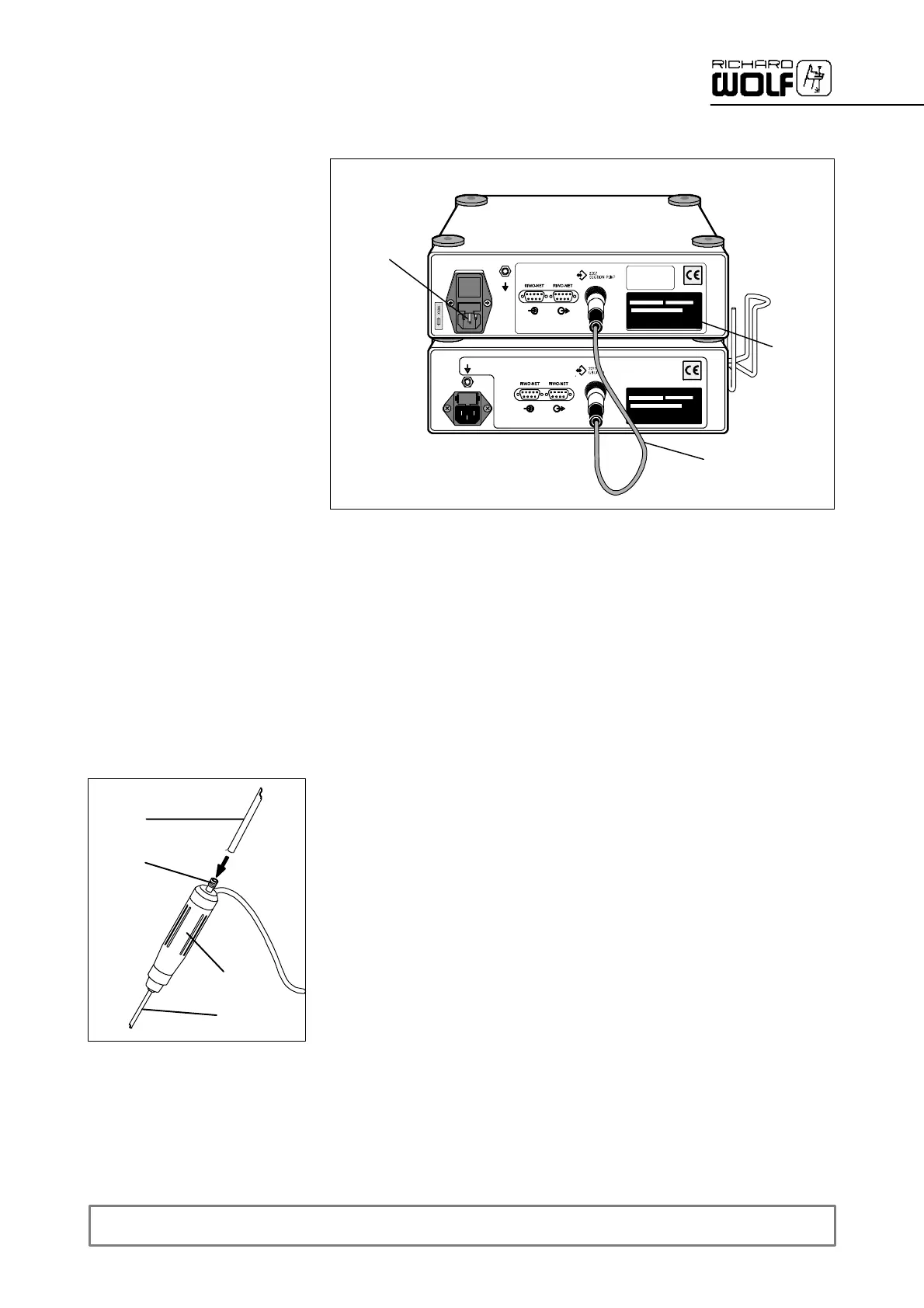

3.1.3 Rear panel connectors
20
11
8
Z The local mains/grid voltage and frequency must be the same as indi-
cated on “identification plate” (11).
Z Connect the supplied power cord to “power input connector” (8)ofthe
Ultrasound Generator and the other end to the wall socket.
Z Connect the control output of the Ultrasound Generator to the control
input of the Suction Pump using connection cable 2207.991 (20).
Connect the plugs to the corresponding sockets on the rear panels of
the devices and secure by turning clockwise.
3.1.4 Front panel connectors
Z Connect the plug of footswitch cable (14) to connection socket (2)of
the Ultrasound Generator.
Z Attach only approved sonotrode (16) to transducer (15). Ensure that
the contact surfaces are clean and the connection tight.
Z Plug the connector strip of transducer cable (17) into connection strip
(3) of the Ultrasound Generator .
Z Plug silicone suction tube (19) onto tube connector (18) of the trans-
ducer and connect the other end of suction tube (19) to the angle con-
nector (i.e. suction connector) of fluid trap (21).
