Ricoh Aficio SP C232DN - Locating Common Paper Jam Locations

Removing Misfed Paper
110
9

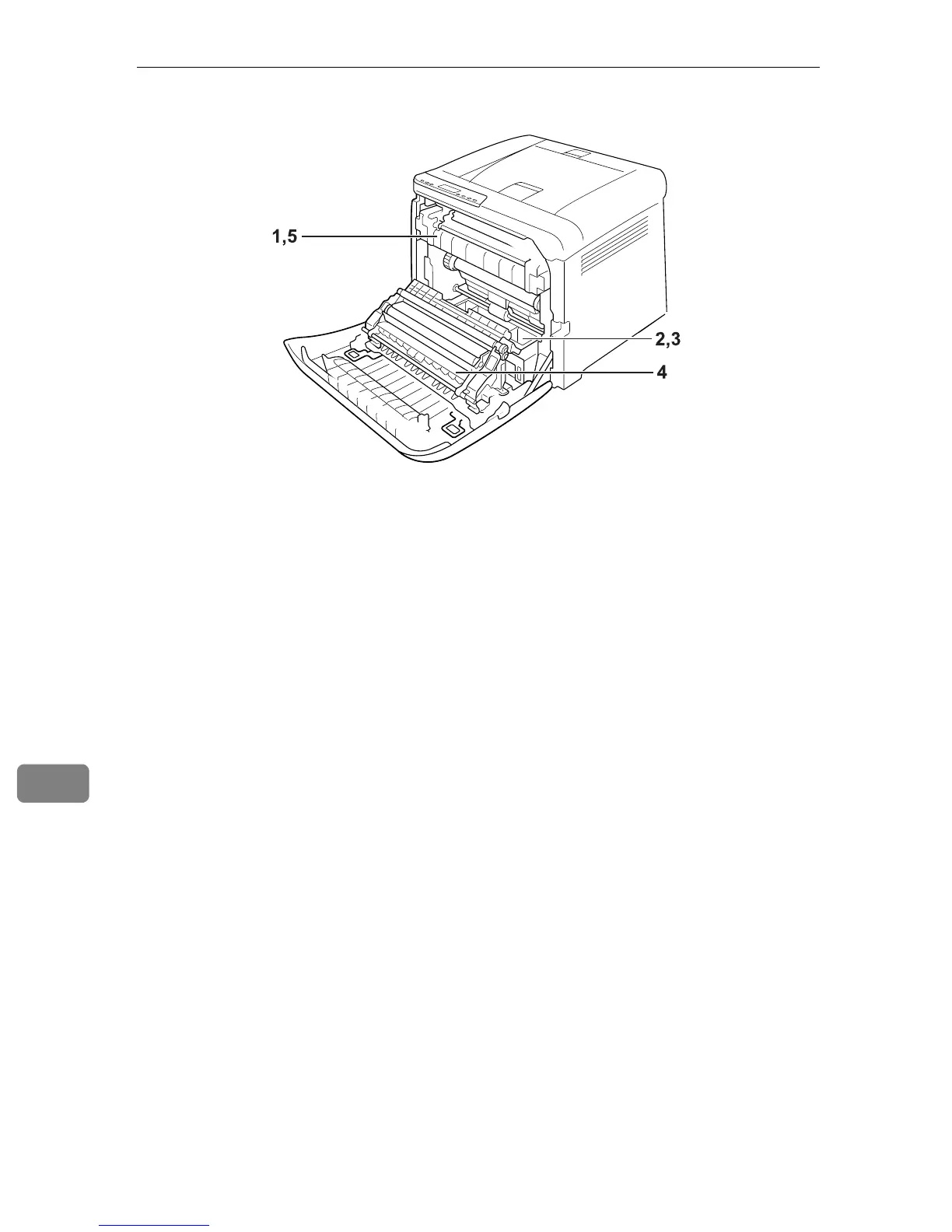

1. Remove Misfeed Internal Path
There is a paper jam in the fusing unit.
See p.111 “When “Remove Misfeed Inter-
nal Path” Appears”.
2. Remove Misfeed Tray 1
There is a paper jam in Tray 1.
See p.113 “When “Remove Misfeed Tray
1” Appears”.
3. Remove Misfeed Tray 2
There is a paper jam in Tray 2.
See p.114 “When “Remove Misfeed Tray
2” Appears”.
4. Paper Misfeed Duplex Unit
There is a paper jam in the duplex unit.
See p.115 “When “Paper Misfeed Duplex
Unit” Appears”.
5. Remove Misfeed Paper Exit
There is a paper jam in the fusing unit.
See p.116 “When “Remove Misfeed Pa-
per Exit” Appears”.
ASH135S
