Making Printer Settings Using the Control Panel
52
5
G Press {U} or {T} to display [Adjustment], and then press the {#Enter} key.
H Press {U} or {T} to select the parameter you want to adjust, and then press
the {#Enter} key.
I Press {U} or {T} to set the registration value (mm).

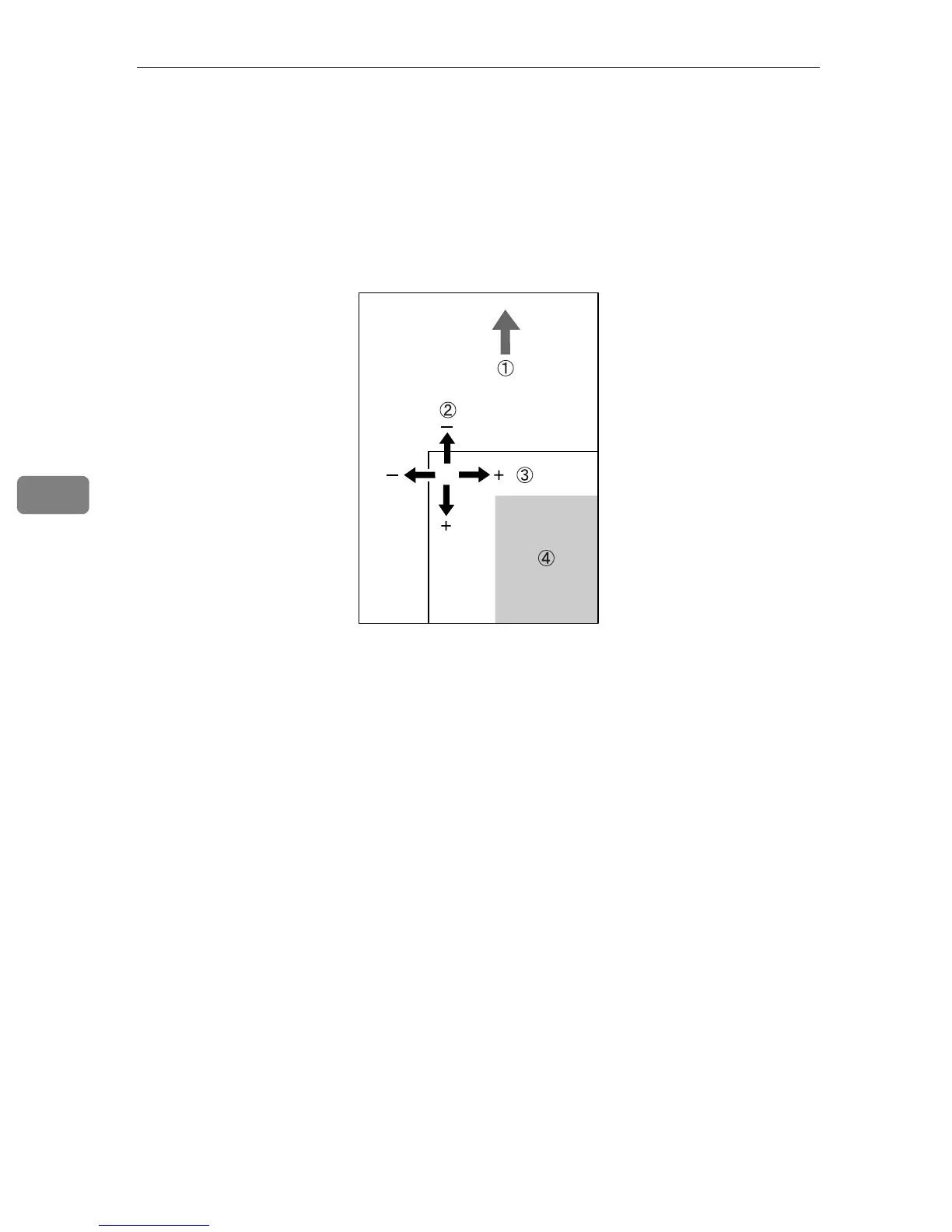

Increase the value to shift the print area in the positive direction, and decrease
to shift in the negative direction.
A : Feed Direction
B : Vertical Adjustment
C : Horizontal Adjustment
D : Print Area
Pressing {U} or {T} makes the value increase or decrease by 1.0 mm steps.
J Press the {#Enter} key.
The display returns to the registration menu screen.
K Press {U} or {T} to display [Prt. Test Sheet], and then press the {#Enter} key.
L Press the {#Enter} key to print the test sheet to confirm the adjustment re-
sult.
M Press the {Menu} key to return to the initial screen.
ASI208S
To Next Page
