Installing the Printer and Options
12
2
I

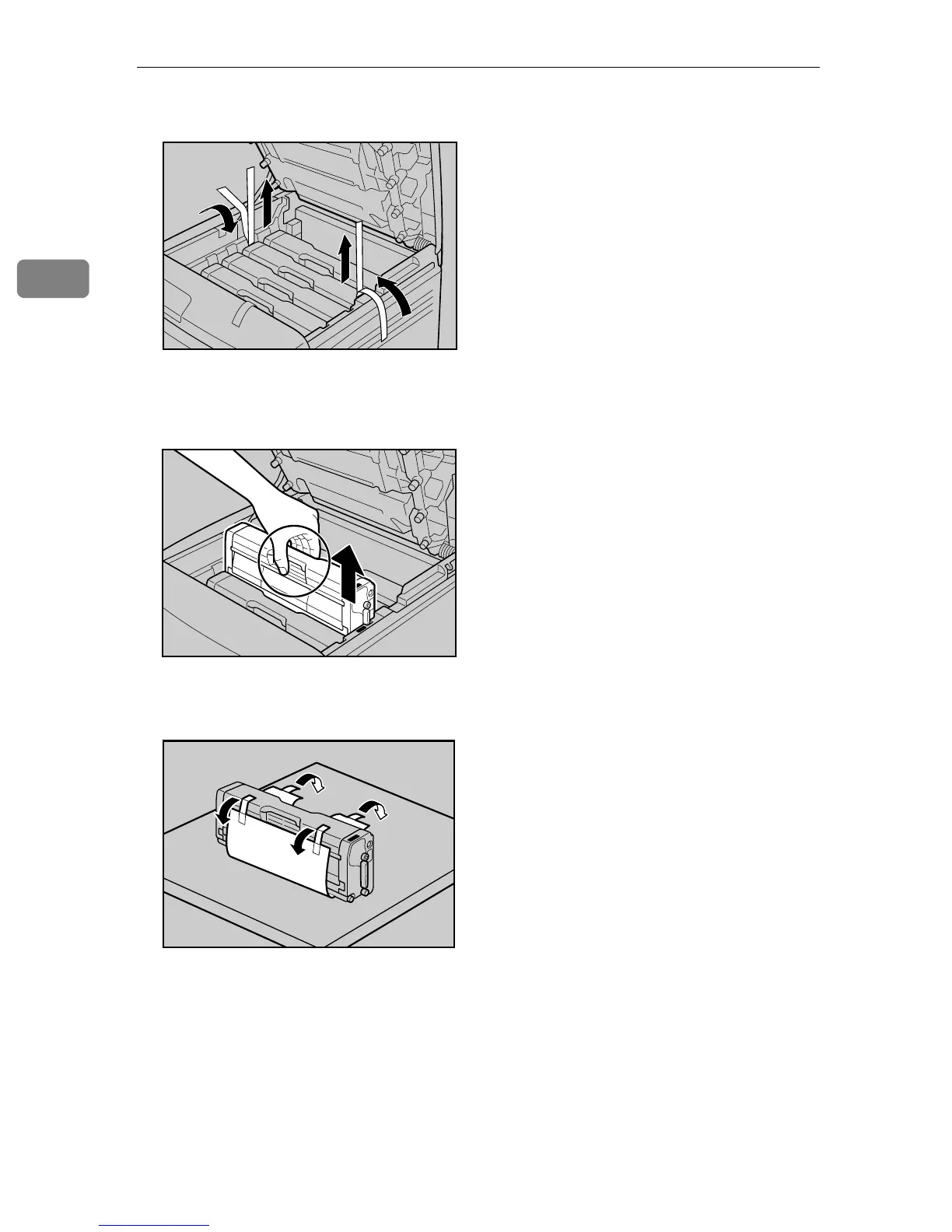

Remove the protection tape.
J
Take each print cartridge out.
Gripping it
s center, carefully
pull
the print cartridge upw
ard and out.
When taking out the black print cartridge,
be sure to place it on at a flat sur-
face, and then remove the protection sheet also
.
ASH1
10S
ASH005S
ASI106S
32
34
