Installing Options
21
2
D

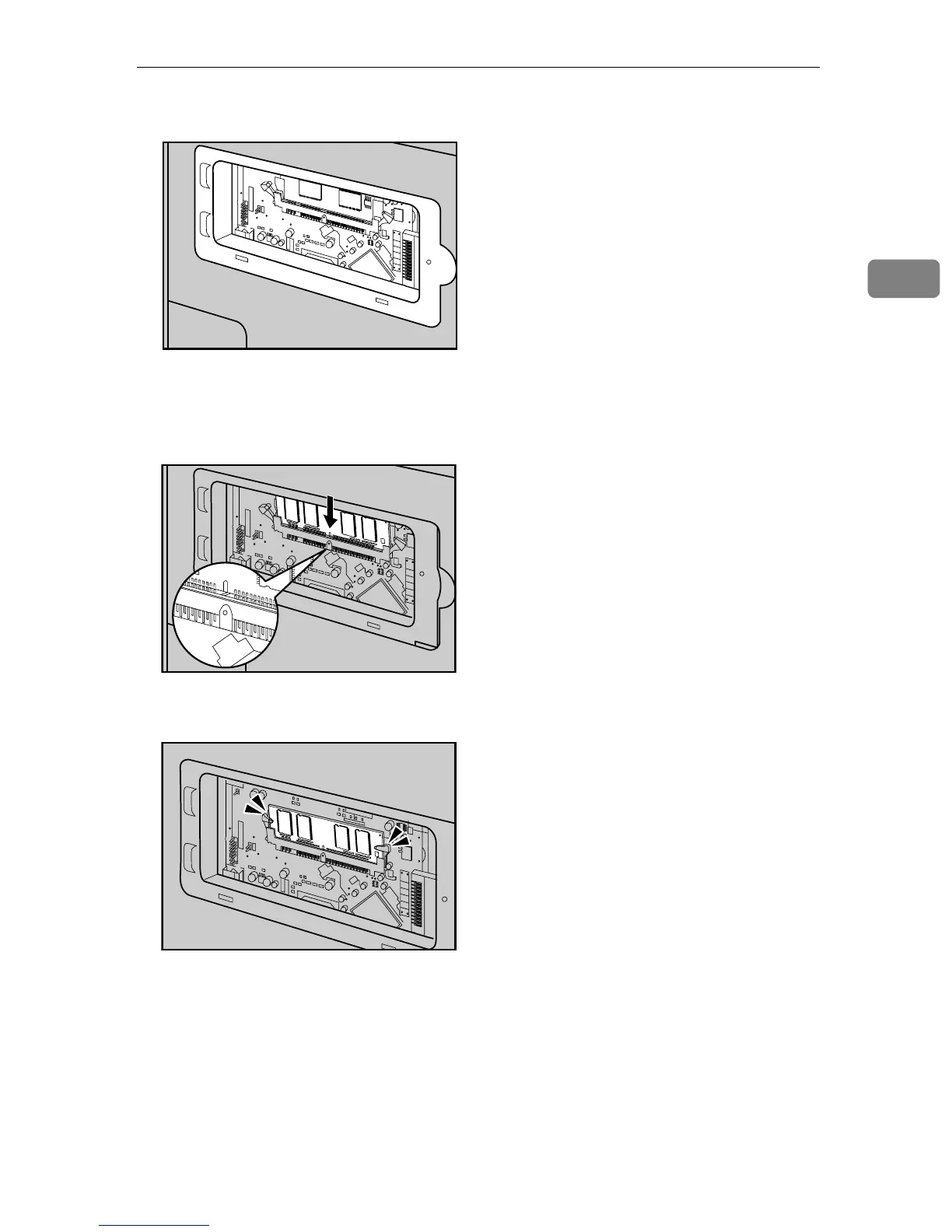

Be sure to install the memory unit as
shown.
E
To install the recommended memory, al
ign the notch of the recommended
memory with the protruding part of the vacant slot, and then carefully in-
sert the module at an angl
e.
F
Keeping the module at an angle, press it
down until it clicks into place.
ASH028S
ASH029S
ASH030S
41
43
Table of Contents
