Paper and Other Media
46
5
❖

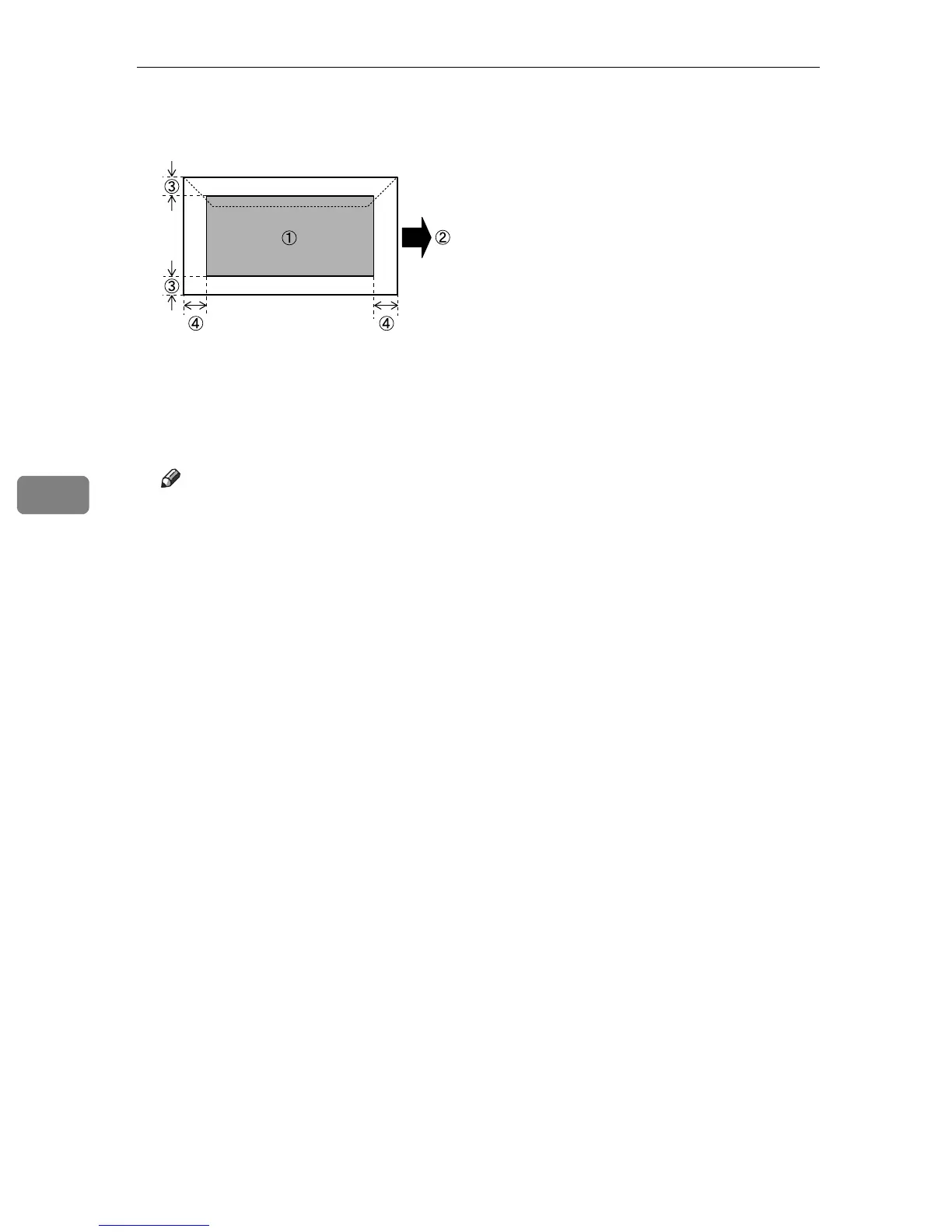

Envelope
A
Print area
B
Feed direction
C
Approx. 4.2 mm (0.17 inches)
D
Approx. 4.2 mm (0.17 inches)
Note
❒
The print area may vary depending
on the paper size, printer language
and printer driver settings.
❒
For better print quality, we recommend th
e right, left, top, and bottom
print margins to be at leas
t 15 mm (0.6 inches) each.
