Ricoh Aficio SP C811DN Hardware Guide

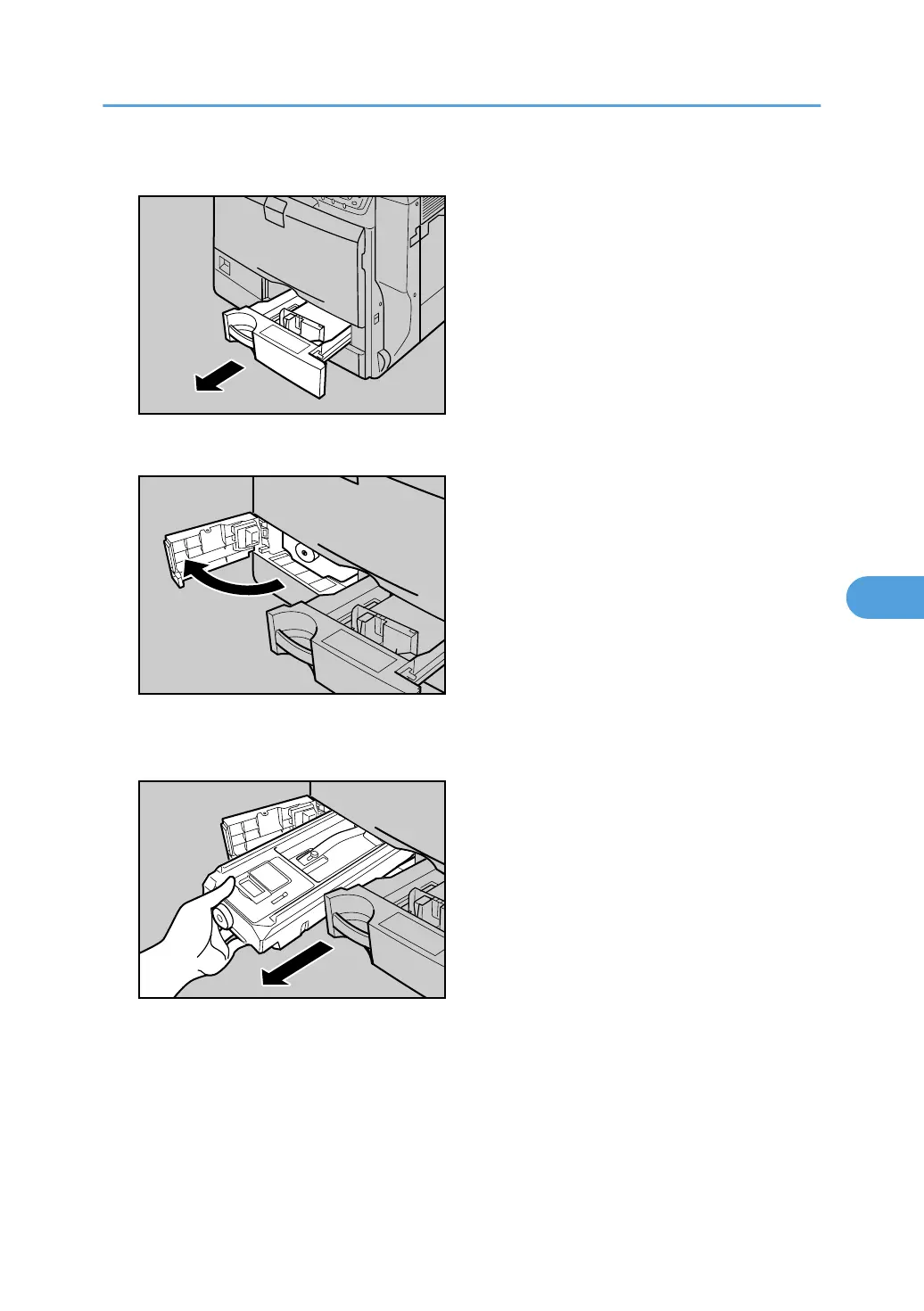

2. Pull out [Tray 1] carefully until it stops.
ASZ112S
3. Open the left front cover slowly.
ASZ113S
4. Holding the green grip located under the front of the waste toner bottle, and pull it out until
the handle on the top is completely visible.
ASZ114S
Replacing the Waste Toner Bottle
133
6
