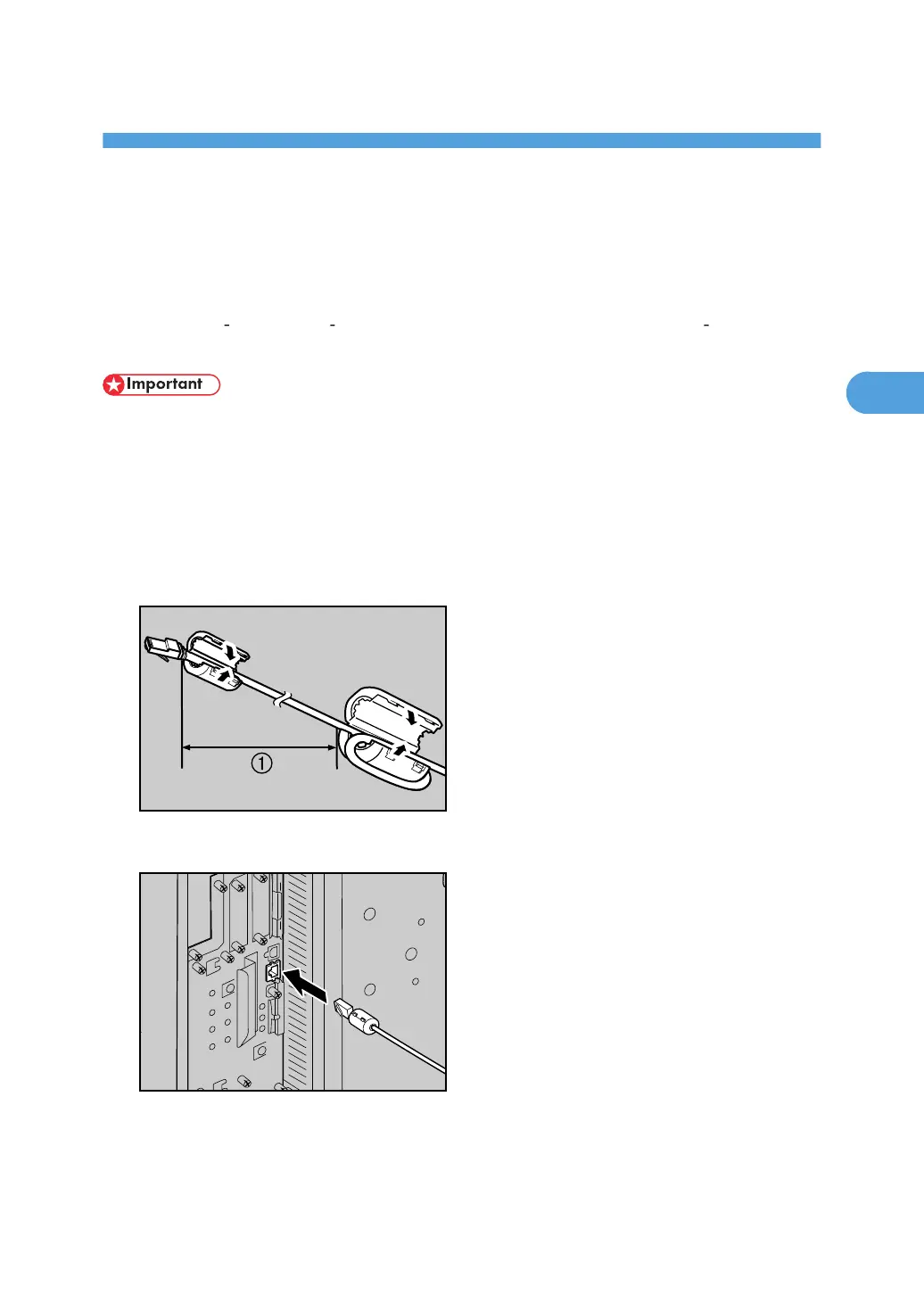

3. Connecting the Printer Cables
Ethernet Cable Connection
Prepare a hub and other network devices, and connect the Ethernet cable to the printer.
Connect 10BASE
T or 100BASE TX cable to the printer’s Ethernet port. For 1000BASE T, the optional
Gigabit Ethernet board is available.
• An Ethernet cable is not supplied with this printer. Select your cable according to the network envi-
ronment.
• The printer’s Ethernet and USB ports are not available when the Gigabit Ethernet board is attached
to the printer.
Connecting to the standard Ethernet port
1. Attach the ferrite core supplied with this printer at the printer end of the Ethernet cable.
2. Connect the Ethernet cable to the Ethernet port that is located on the left side of the printer.
3. Connect the other end of the cable to the network, for example using a hub.
