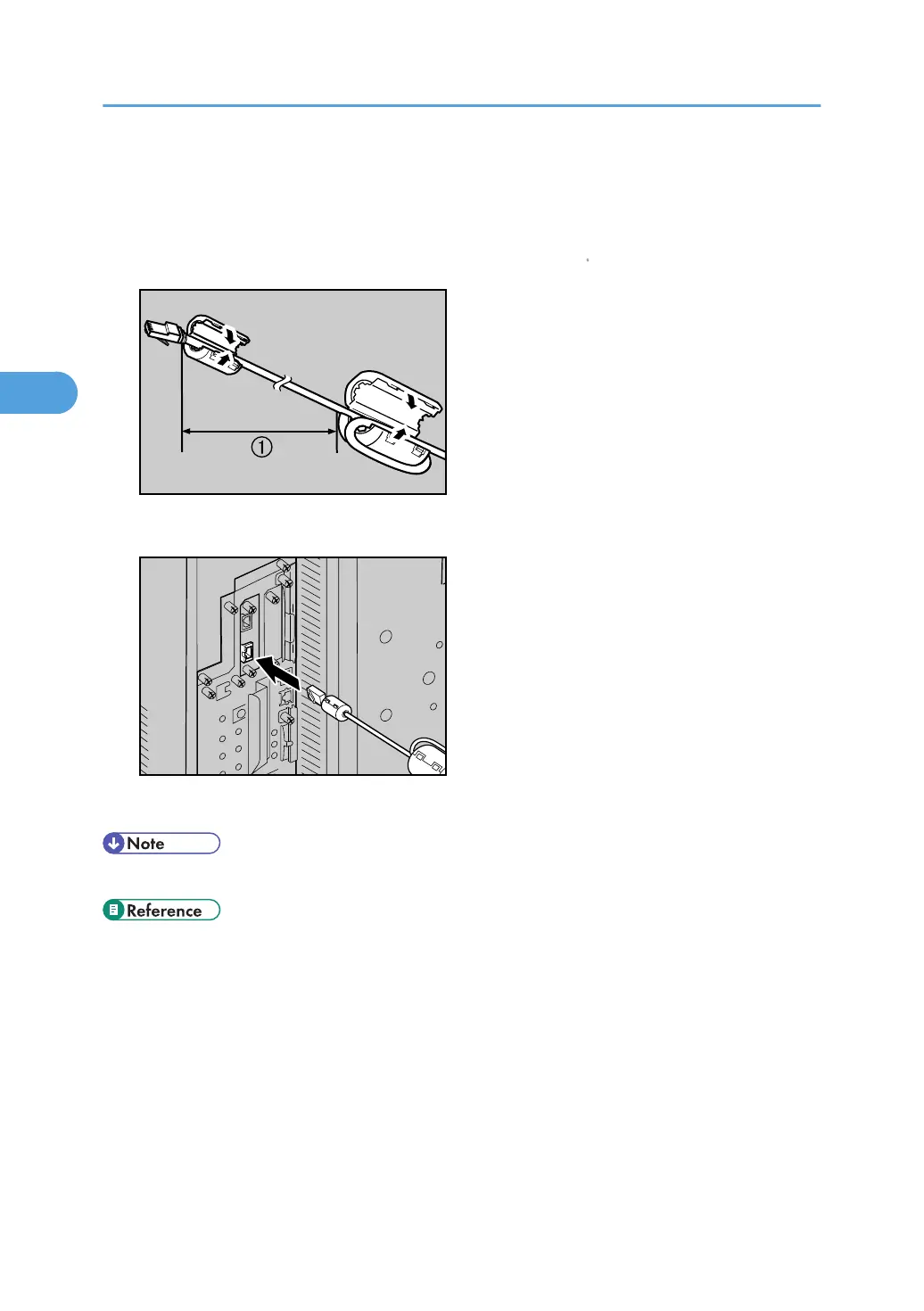

Connecting to the Ethernet port of the Gigabit Ethernet board
1. Attach two ferrite cores to the Ethernet cable.
Attach the core supplied with the printer to the connector end, and the one supplied with the Gigabit
Ethernet board about 15 cm (6 inches) from the connector end ( ).
2. Connect the Ethernet cable to the Ethernet port of the Gigabit Ethernet board.
3. Connect the other end of the cable to the network, for example using a hub.
• For details about configuring the network environment, see p.67 "Ethernet Configuration".
• p.43 "Installing the Gigabit Ethernet Board".
• p.67 "Ethernet Configuration".
3. Connecting the Printer Cables
