5.

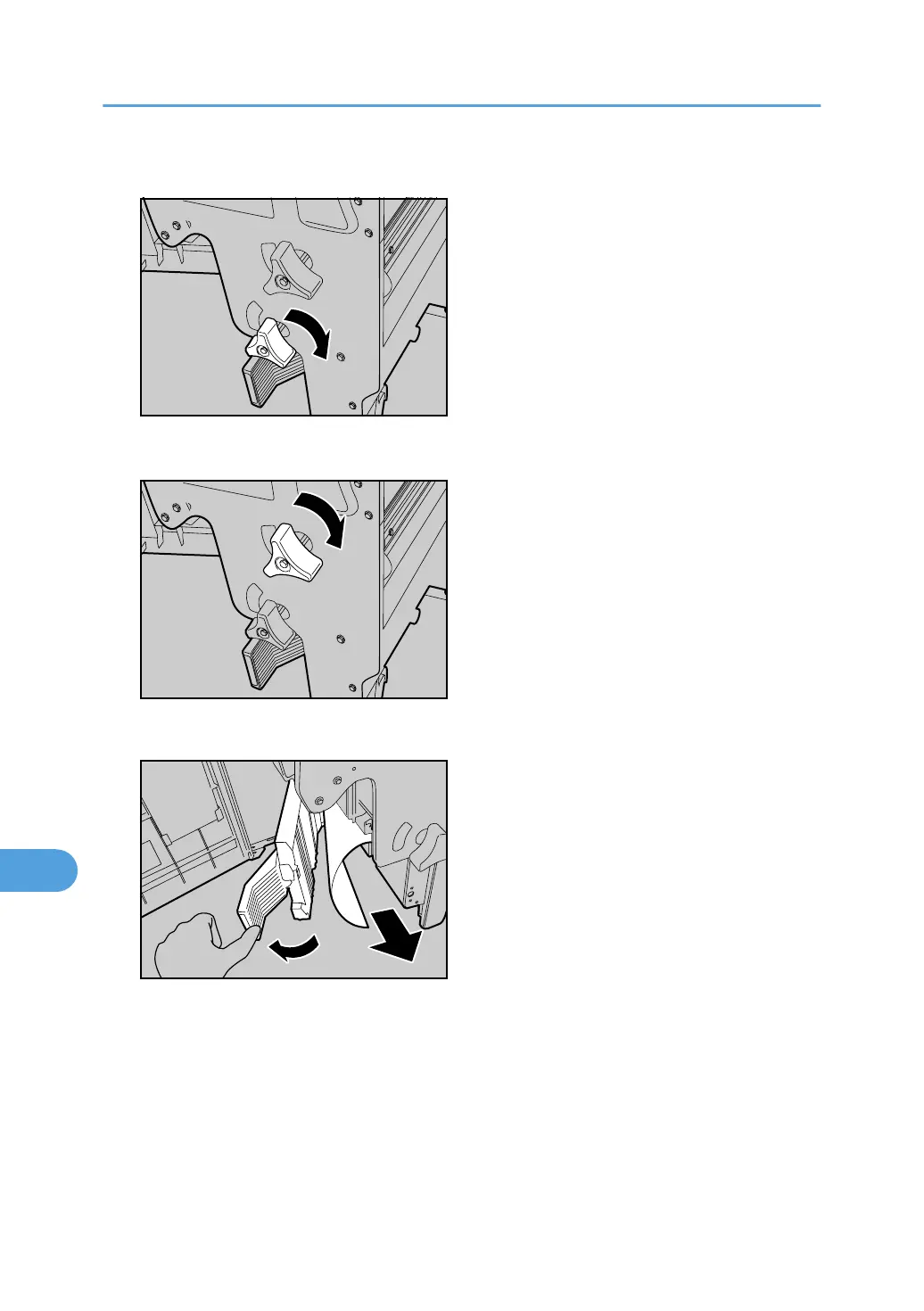

Turn the R9 lever clockwise.
ASZ204S
6.
Turn the R10 lever clockwise.
ASZ205S
7.
Push the R11 lever outward to remove the paper.
ASZ206S
8.
Return the R11 lever and reinstall the staple unit in.
9.
Close the front cover of the finisher.
10. Removing Misfed Paper
212
10
213
215
