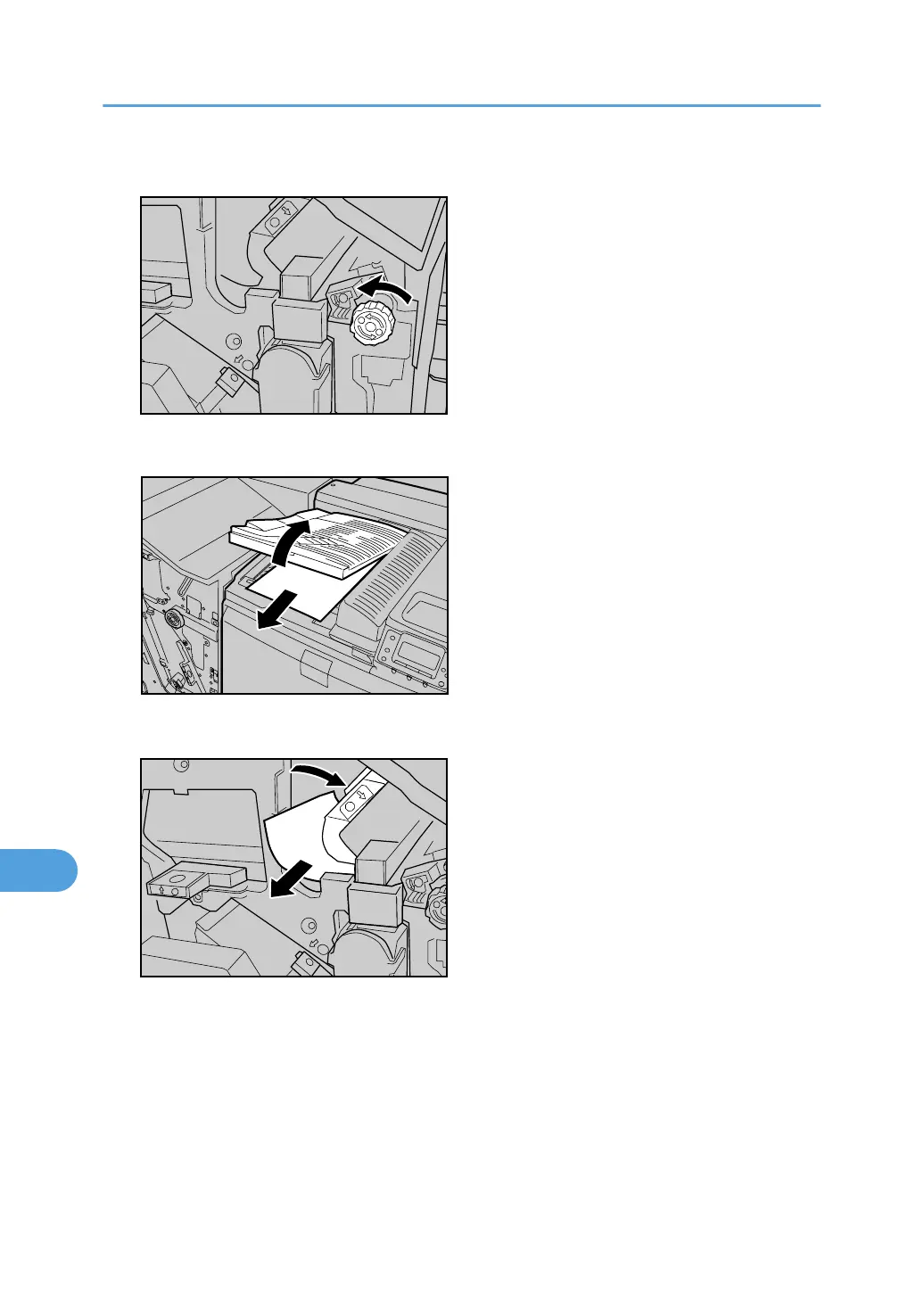

4. Turn the R2 lever counterclockwise.
ASZ209S
5. Open the left cover of the bridge unit and remove the paper.
ASZ210S
6. If the paper cannot be removed, open the R3 lever and remove the paper.
ASZ211S
10. Removing Misfed Paper
214
10
