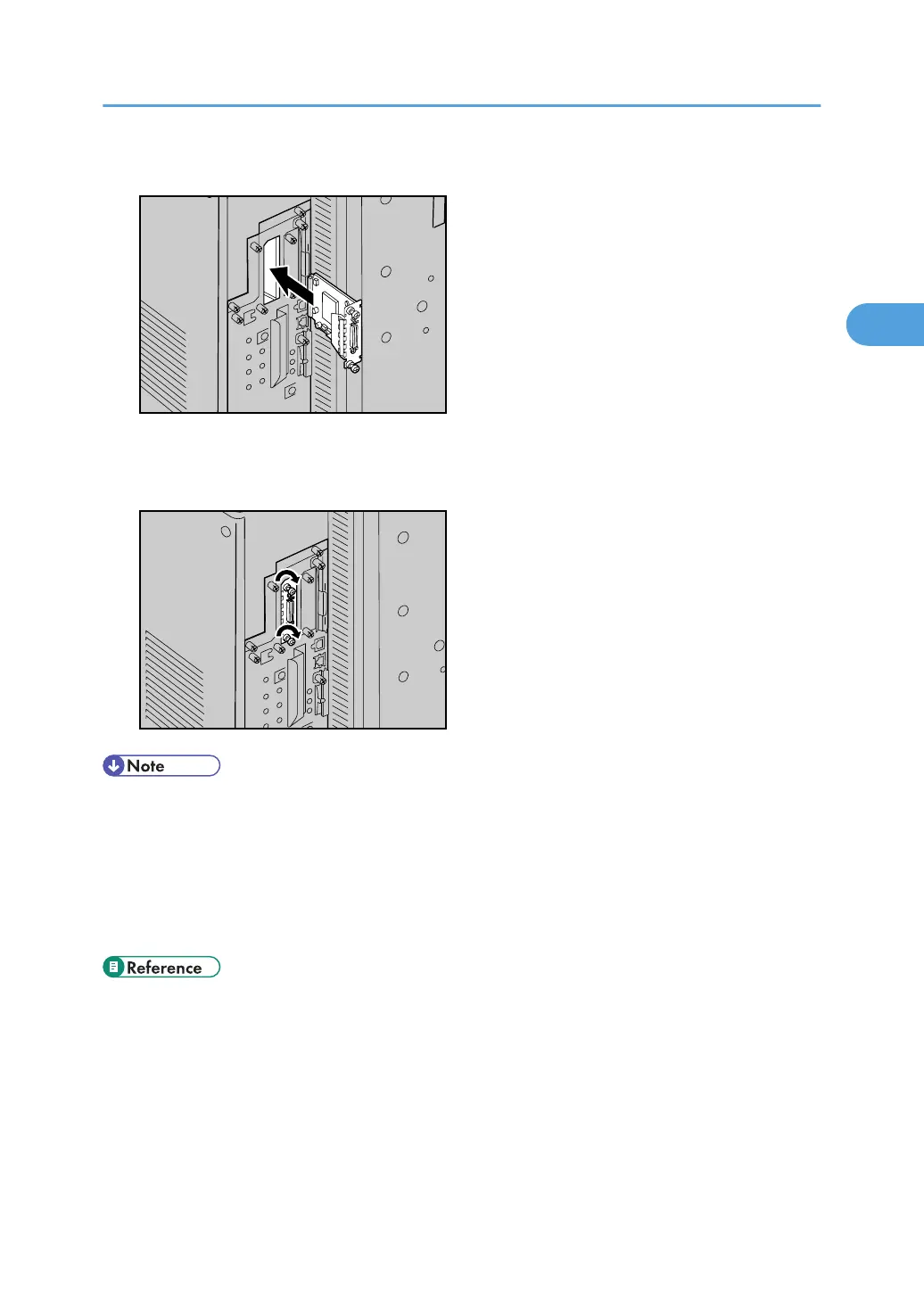

4. Fully insert the IEEE 1284 interface board.
Confirm that the IEEE 1284 interface board is firmly connected to the controller board.
5. Tighten the two screws to secure the interface board.
• Confirm that the IEEE 1284 interface board was correctly installed by printing the configuration page.
If it is correctly installed, "Parallel Interface" will appear for "Device Connection" on the configuration
page.
• If the board was not installed properly, repeat the procedure from step 2. If it cannot be installed
correctly even after reattempting installation, contact your sales or service representative.
• For information on printing the configuration page, see "Test Printing", Quick Installation Guide.
• "Test Printing", Quick Installation Guide
• p.66 "Parallel Cable Connection".
Installing the IEEE 1284 Interface Board
53
