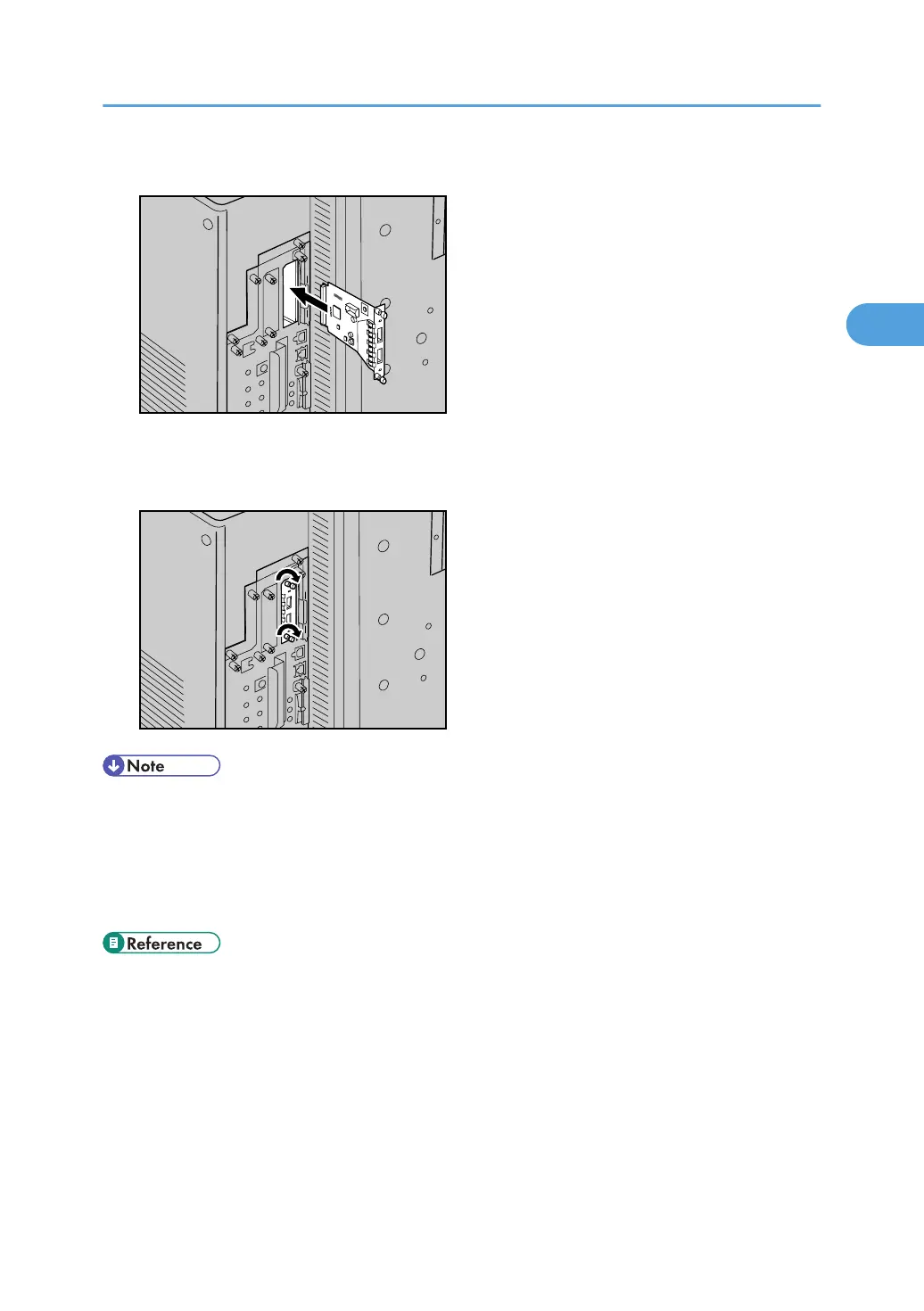

4. Fully insert the interface board.
Confirm that the interface board is firmly connected to the controller board.
5. Tighten the two screws to secure the interface board.
• Confirm that the USB host interface board was correctly installed by printing the configuration page.
If it is correctly installed, "USB Host" will appear for "Device Connection" on the configuration page.
• If the board was not installed properly, repeat the procedure from step 2. If it cannot be installed
correctly even after reattempting installation, contact your sales or service representative.
• For information on printing the configuration page, see "Test Printing", Quick Installation Guide.
• "Test Printing", Quick Installation Guide
• p.63 "Digital Camera Connection"
Installing the USB Host Interface Board
55
