• Not using the USB cable supplied with the USB host interface board

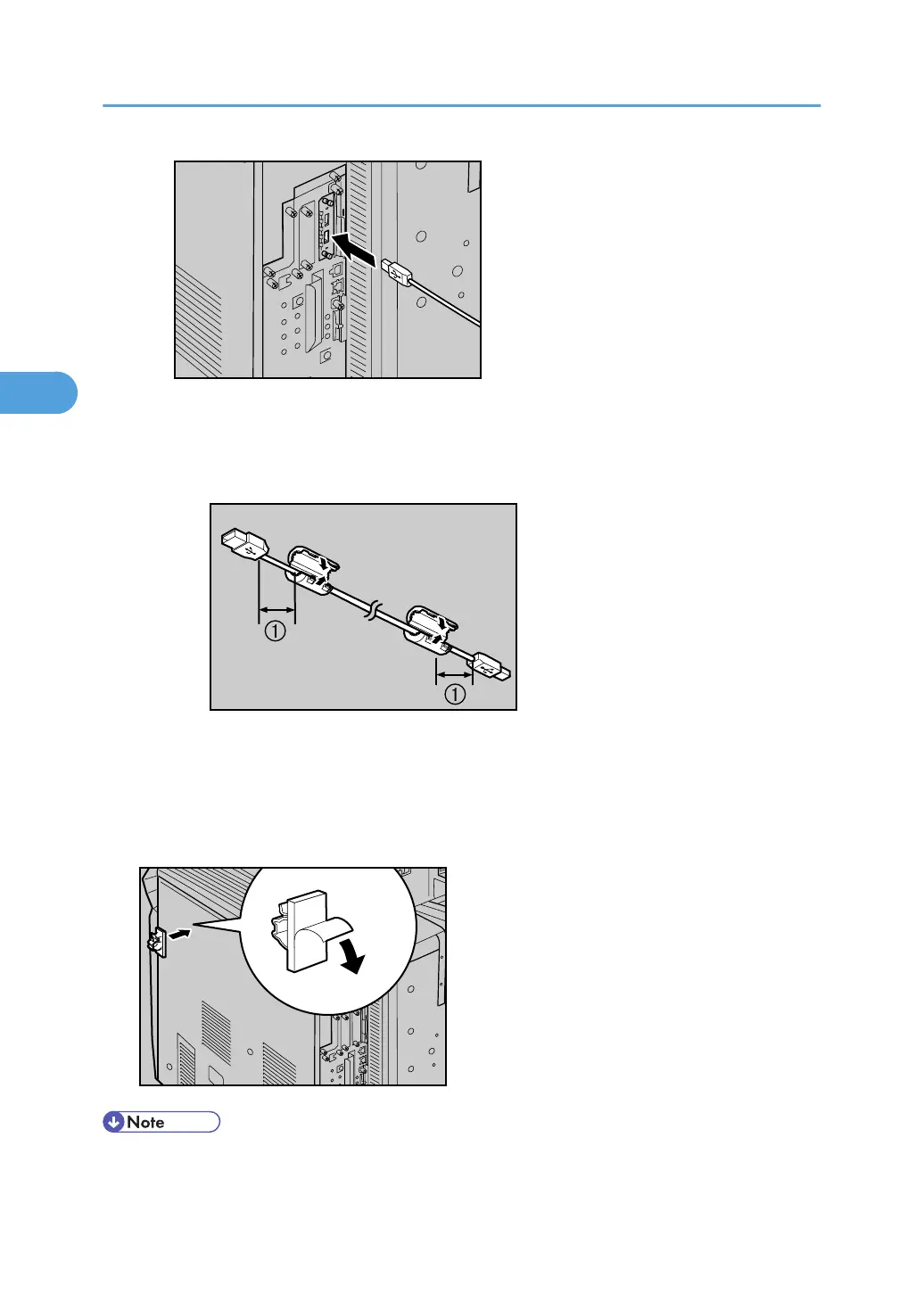

1. Attach the two ferrite cores supplied with the USB host interface board to the USB cable.
Attach a ferrite core at each end of the USB cable about 5 cm (2 inches) from the connector.
2. Connect the larger connector of the USB cable to the USB host interface board.
3. Connect the other connector of the USB cable to the digital camera.
4. Attach the hook to hang the USB cable on when not connecting to the digital camera.
As shown below attach the hook where it will not interfere with printer operation and access.
• For the printing method, see "PictBirdge Printing", Software Guide.
