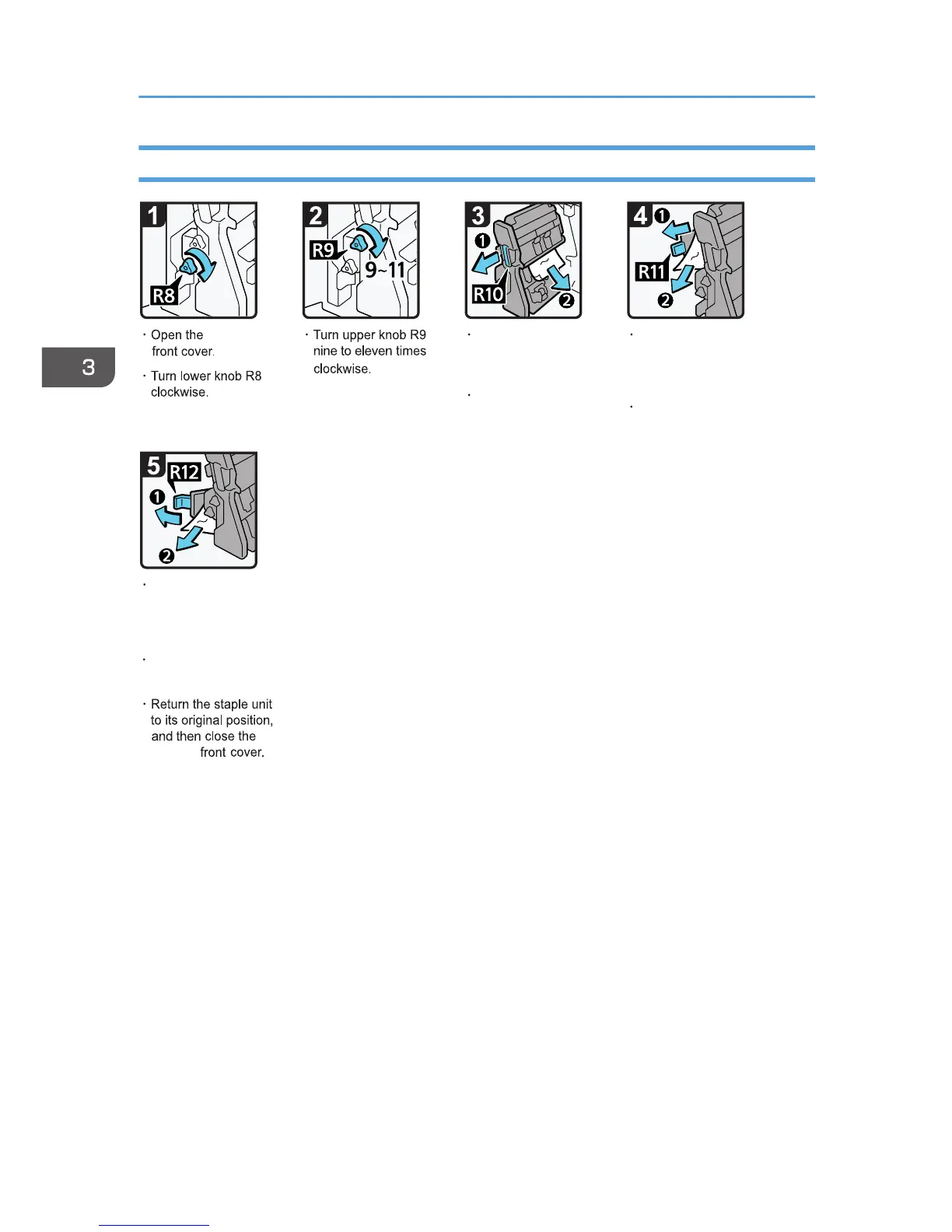

When R8–R12 Is Displayed for the 2000-sheet Booklet Finisher

CJH005

If you cannot remove

misfed paper, pull

lever R11, and then

remove it.

If you cannot remove

misfed paper, pull

lever R12, and then

remove it.

Pull handle R10,

and then pull out the

staple unit.

Remove misfed

paper.

finisher

Return lever R11 to

its original position.

Return lever R12 to

its original position.

3. Troubleshooting

126
