• Do not obstruct the ventilation holes by placing objects near or against them. If the printer
overheats, a malfunction might occur.

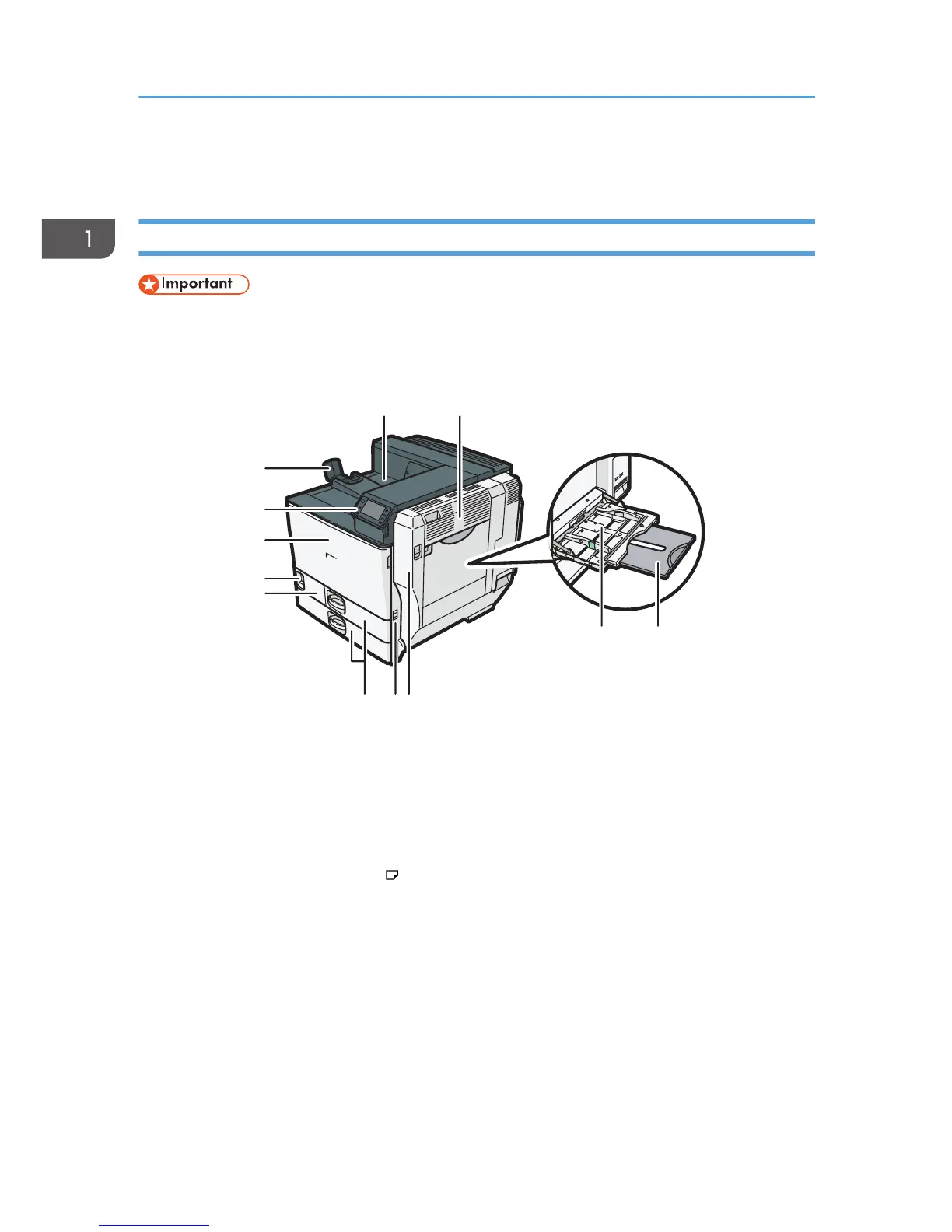

Front and right view
1
7 6 5
12
11
10
9
8
2
34
CQT003
1. Standard output tray
Printed pages are output here.
2. Upper right cover
Open this cover to remove jammed paper.
3. Bypass tray extension
When loading paper larger than A4 , pull out the bypass tray extension. For details about the sizes and
types of paper that can be used, see p.33 "Supported Paper for Each Input Tray".
4. Bypass tray
Up to 100 sheets of plain paper can be loaded.
5. Right cover (Duplex unit)
Open this cover to replace the fusing unit and transfer roller, or to remove jammed paper.
6. Handle
Pull out this handle when lifting the printer.
7. Tray 1, Tray 2
Up to 550 sheets of plain paper can be loaded in each tray.
