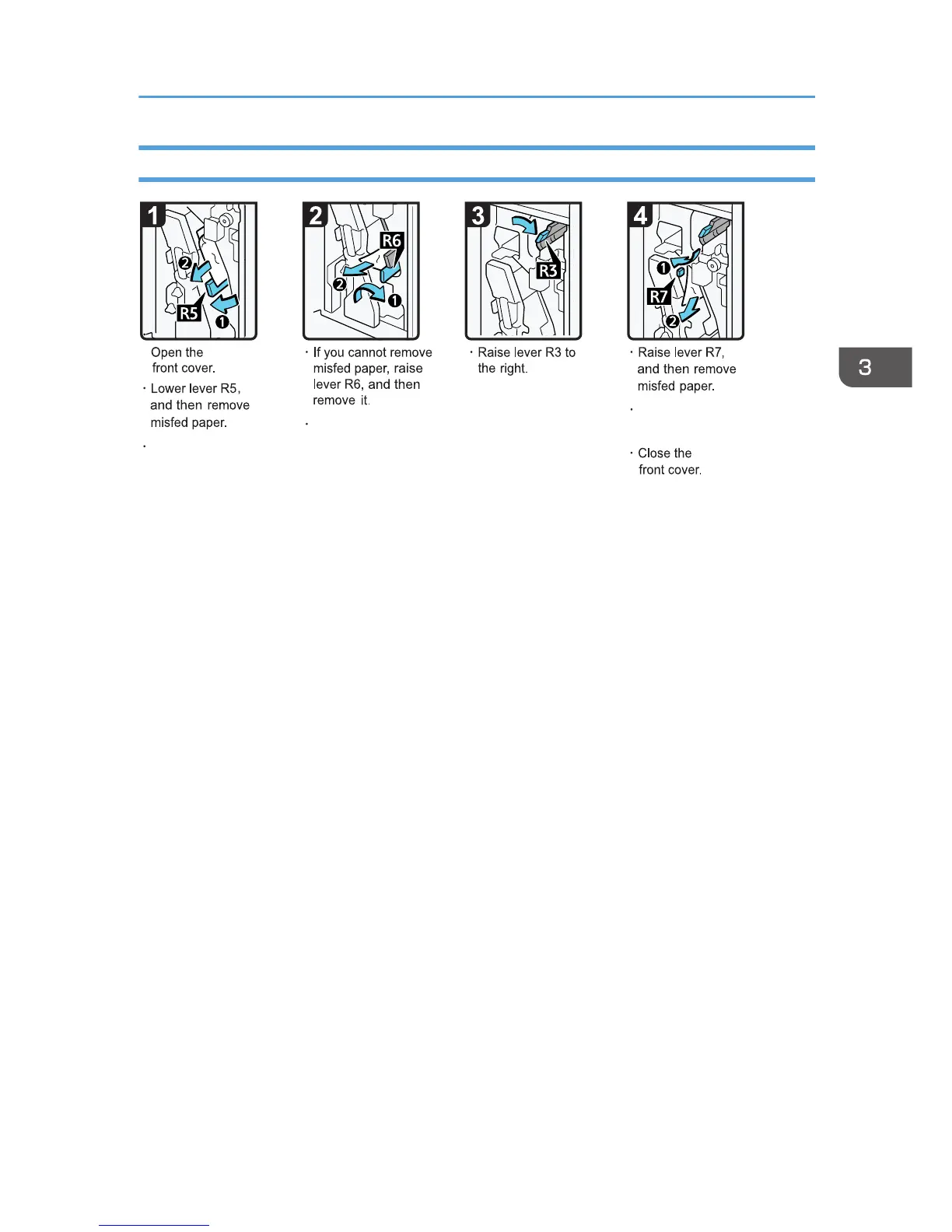

When R5–R7 Is Displayed for the 2000-sheet Booklet Finisher

CJH004

Return lever R6 to

its original position.

Return lever R3 to

its original position.

finisher

Return lever R5 to

its original position.

finisher

Removing Jammed Paper

125
