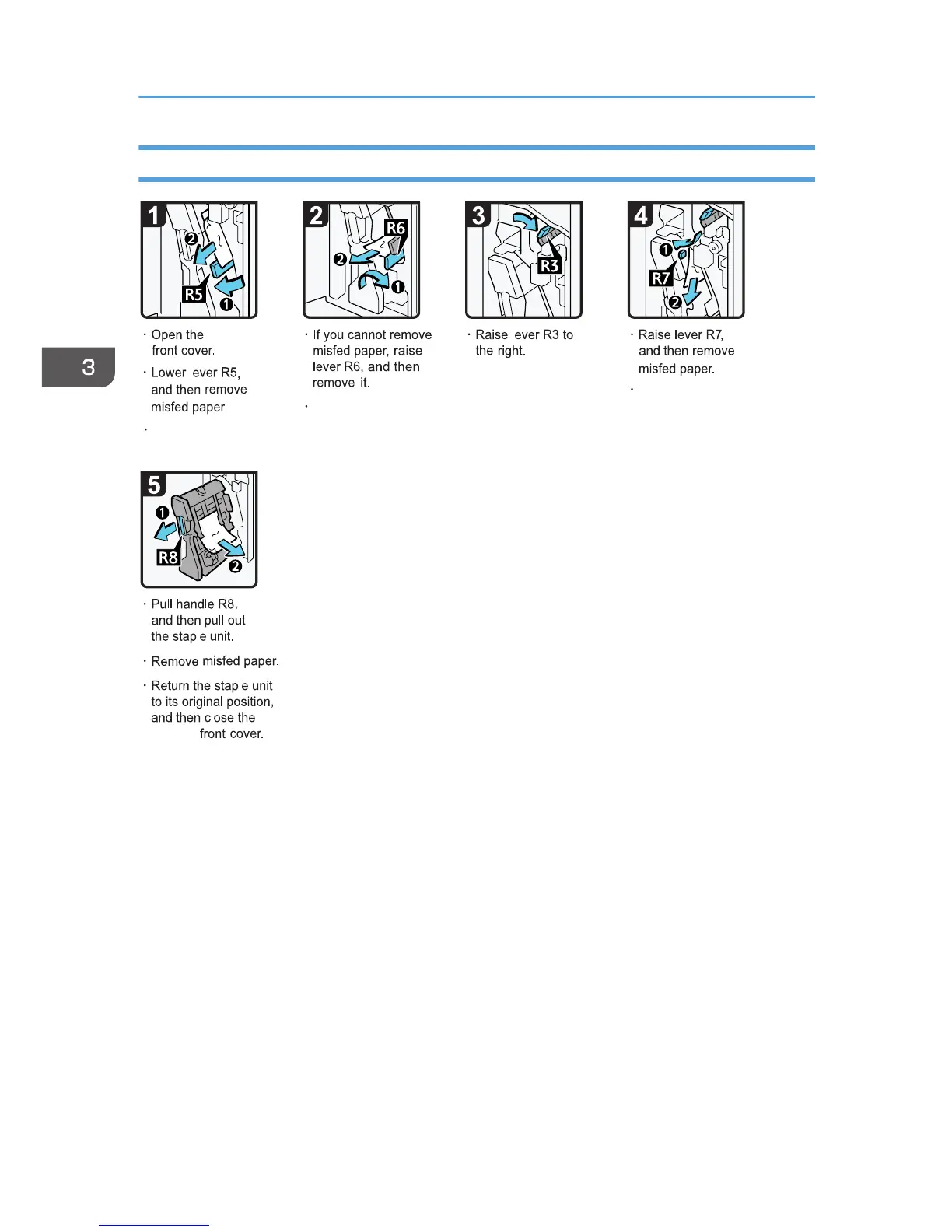

When R5 - R8 Is Displayed for the 3000-sheet finisher

CJH007

finisher

Return lever R5 to

its original position.

Return lever R6 to

its original position.

Return lever R3 to

its original position.

3. Troubleshooting

128
