Fusing
SM 4-39 D245/D246/D247
Replacement
and Adjustment
4.10 FUSING
 Unplug the machine power cord before starting the following procedures.
4.10.1 FUSING UNIT
 The fusing unit can become very hot. Make sure that it has cooled down
sufficiently before you handle it.
1. Turn off the main switch, and unplug the machine.
2. Right rear cover (page 4-5)
3. Open the right door.

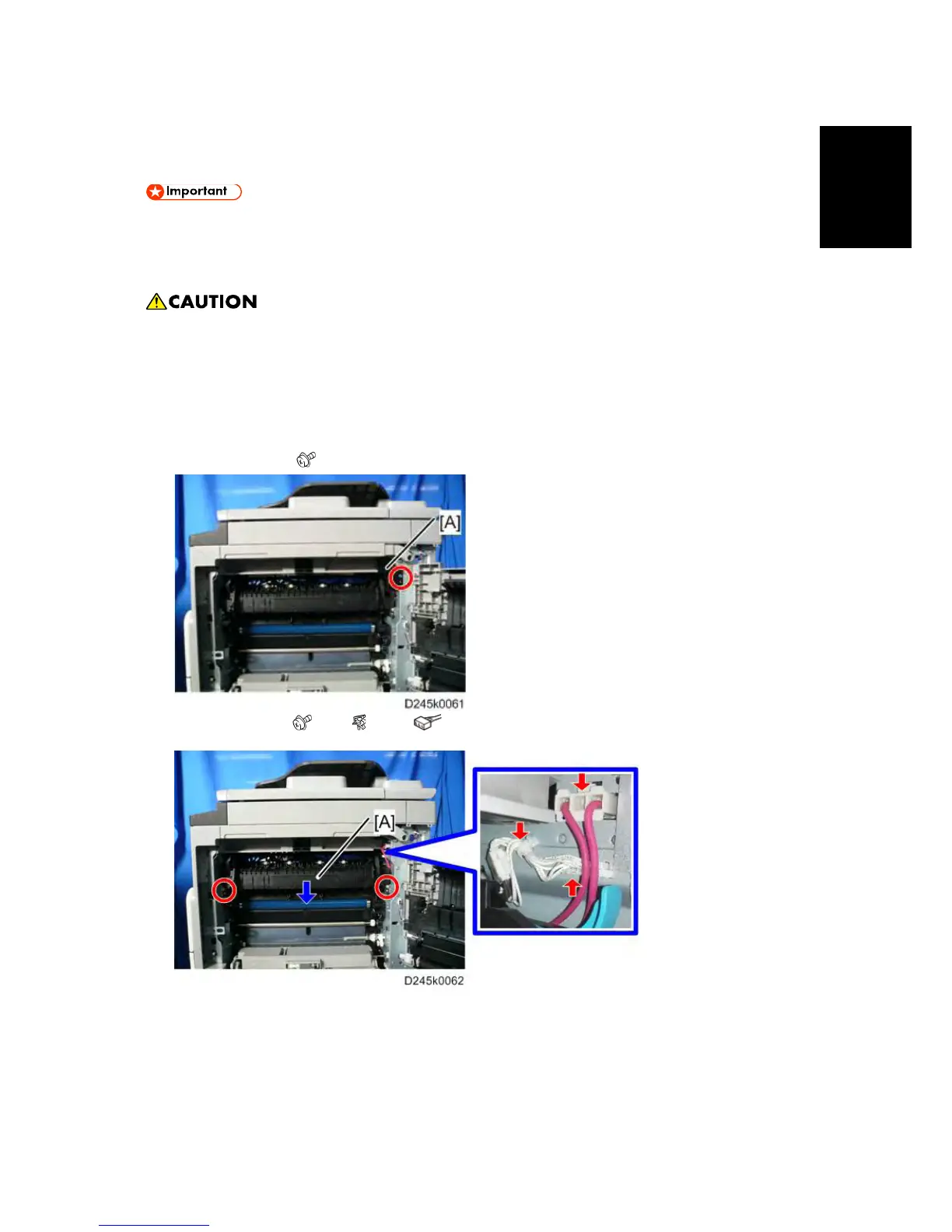

4. Cable cover [A] (
x 1)
5. Fusing unit [A] ( x 2, x 1, x 2)
