Information

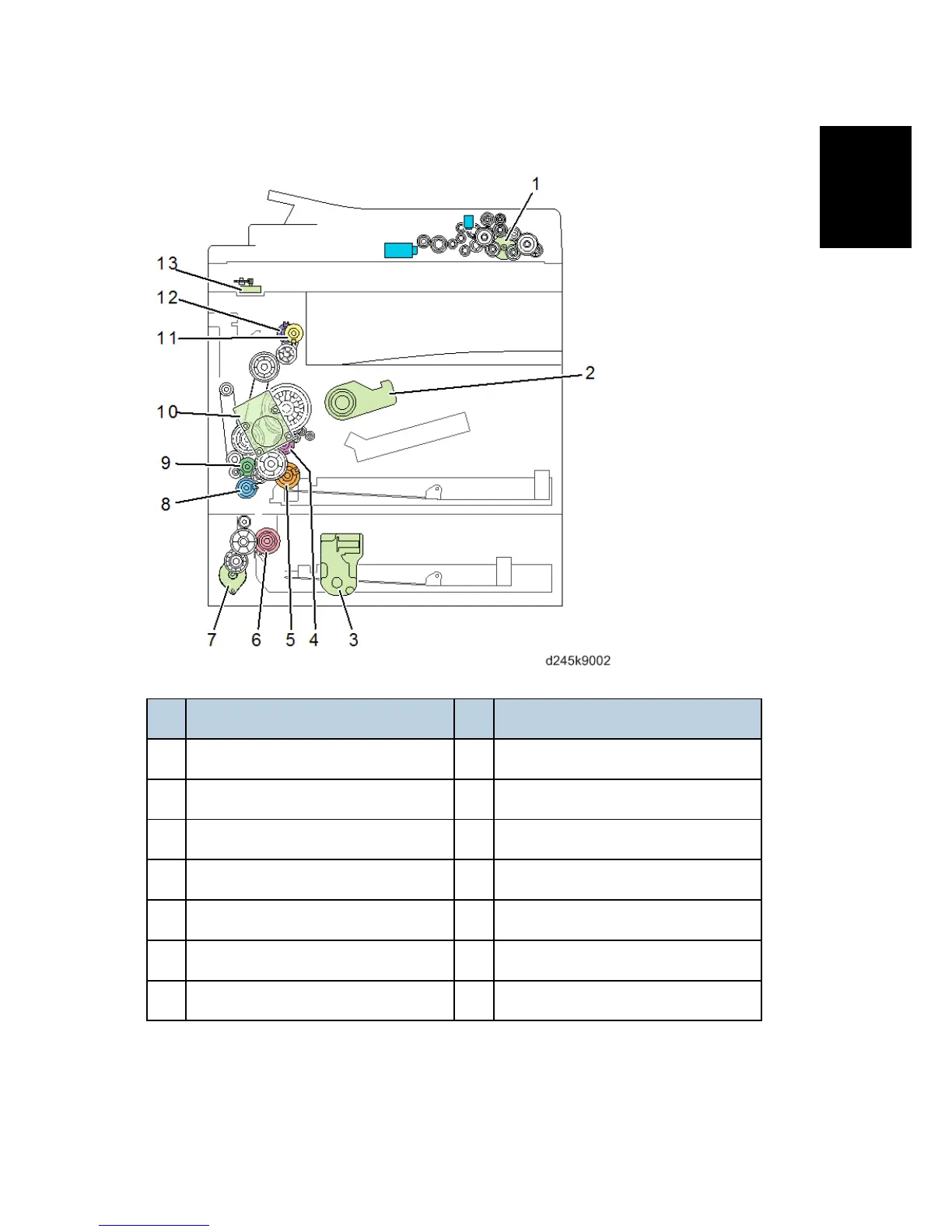

1.1.3 DRIVE LAYOUT
No. Description No. Description
1 ADF main motor (D247 only) 8 By-pass paper feed clutch
2 Toner supply motor 9 Duplex clutch (D246 / D247 only)
3 Tray lift motor (Option) 10 Main motor
4 Registration clutch 11 Reverse clutch (D246 / D247 only)
5 Paper feed clutch (Main) 12 Paper exit clutch (D246 / D247 only)
6 Paper feed clutch (Option) 13 Scanner motor
7 Transport motor (Option)
