ADF Unit
SM 4-10 D245/D246/D247

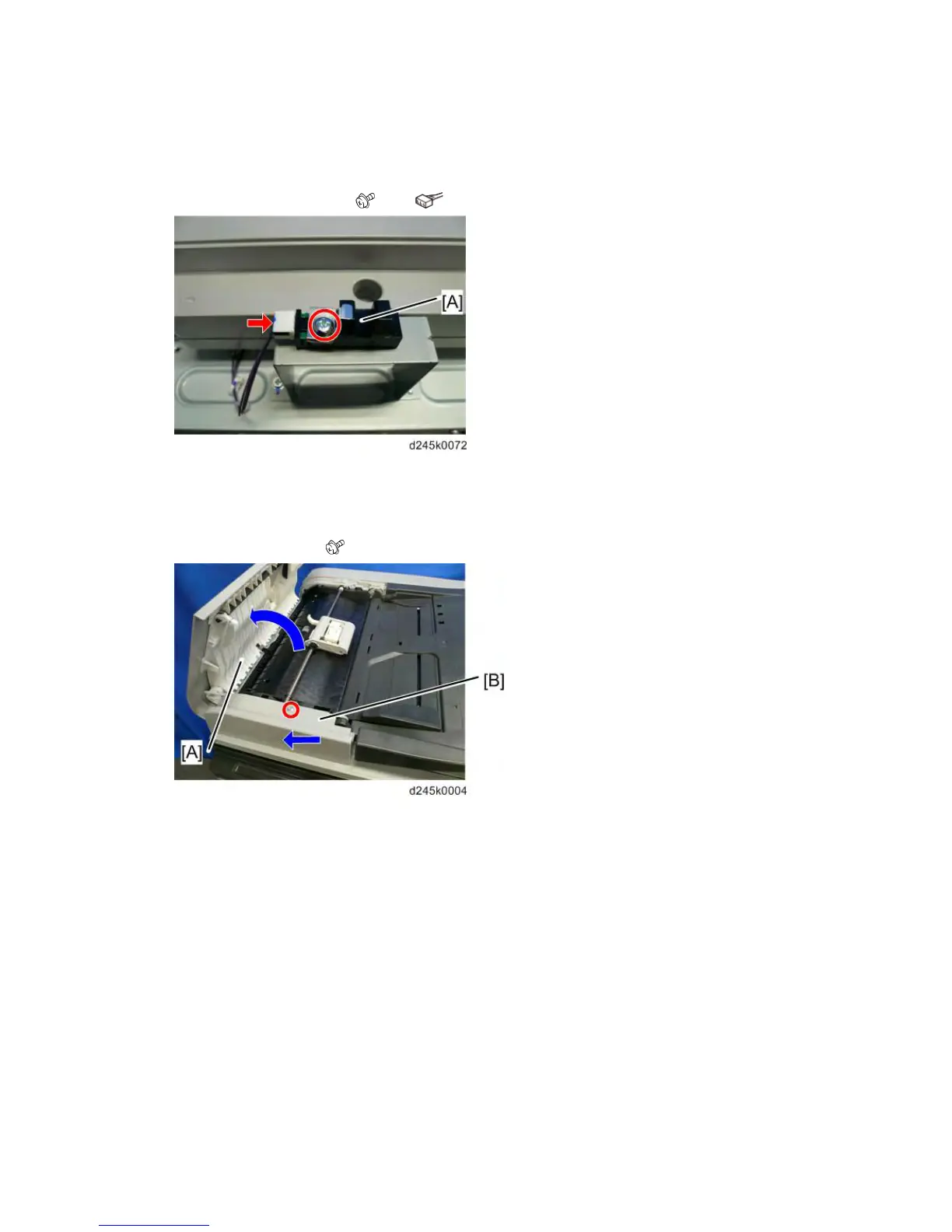

4.4.2 PLATEN COVER SENSOR
1. Top rear cover (page 4-21)
2. Platen cover sensor [A] (
x 1, x 1)
4.4.3 ADF FRONT COVER
1. Open the ADF upper cover [A].
2. ADF front cover [B] (
x 1)
