Ricoh MP 2014 - Fusing Entrance Guide Plate; Fusing Exit Guide Plate

Fusing
SM 4-40 D245/D246/D247

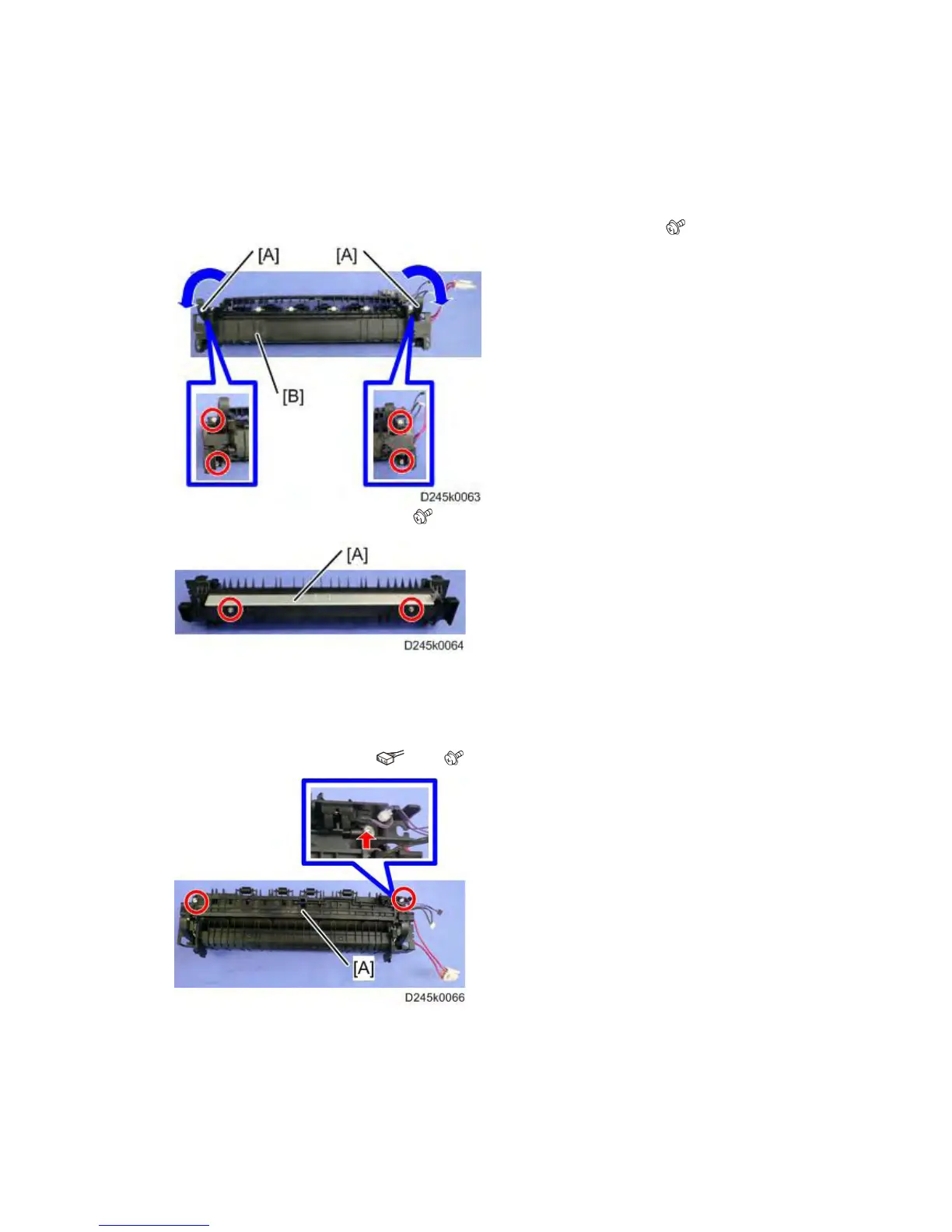

4.10.2 FUSING ENTRANCE GUIDE PLATE
1. Fusing unit (page 4-39)
2. Pull up the pressure arms [A]
3. Separate the pressure roller section [B] from the hot roller section (
x 4).
4. Fusing entrance guide plate [A] ( x 2)
4.10.3 FUSING EXIT GUIDE PLATE
1. Fusing unit (page 4-39)
2. Fusing exit guide plate [A] (
x 1, x 2)
