Ricoh MP 2014 - Laser Unit

Laser Unit
SM 4-28 D245/D246/D247
4.7.3 LASER UNIT
1. Front right cover (page 4-3)
2. Paper exit tray (page 4-6)
3. Fan duct [A] (
x 2, x 1, x 1)

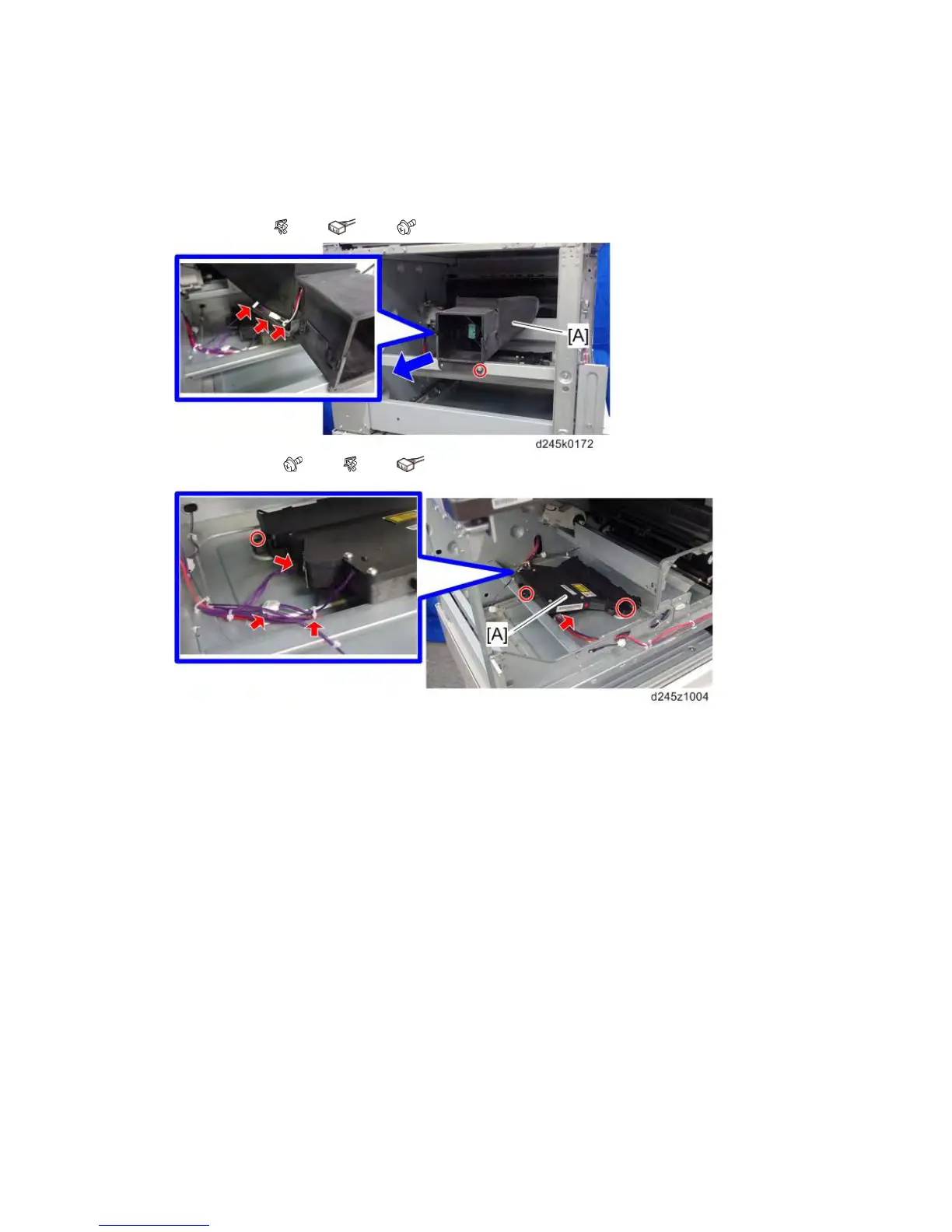

4. Laser unit [A] (
x 3, x 1, x 2)
