7.Detailed Descriptions
254

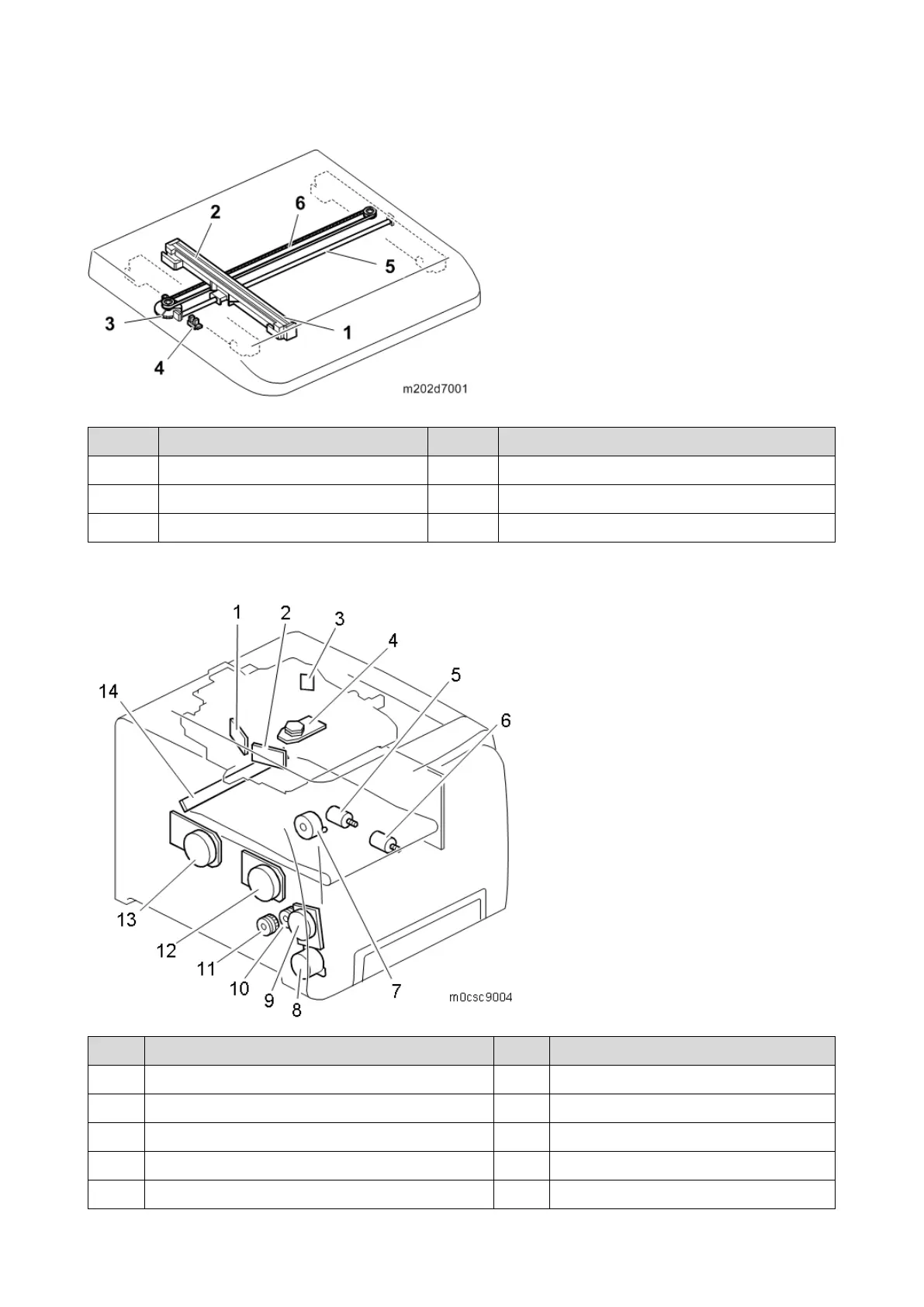

Scanner Unit (Only MF Model)
No.
Name
No.
Name
1
CIS carriage unit
4
Scanner HP sensor (S14)
2
CIS
5
Carriage drive shaft
3
Scanner motor (M9)
6
Scanner timing belt
Laser Exposure Unit, Motors
No.
Name
No.
Name
1
LDB (C/M)
8
Paper transport motor (M3)
2
LDB (K/Y)
9
Fusing motor (M4)
3
Synchronizing detector board
10
Registration clutch (CL2)
4
Polygon mirror motor
11
Paper feed clutch (CL1)
5
ITB contact motor (M6)
12
Black drum motor (M2)
