Ricoh P C300W - Fusing Thermopile (TH2)

4.Replacement and Adjustment
83

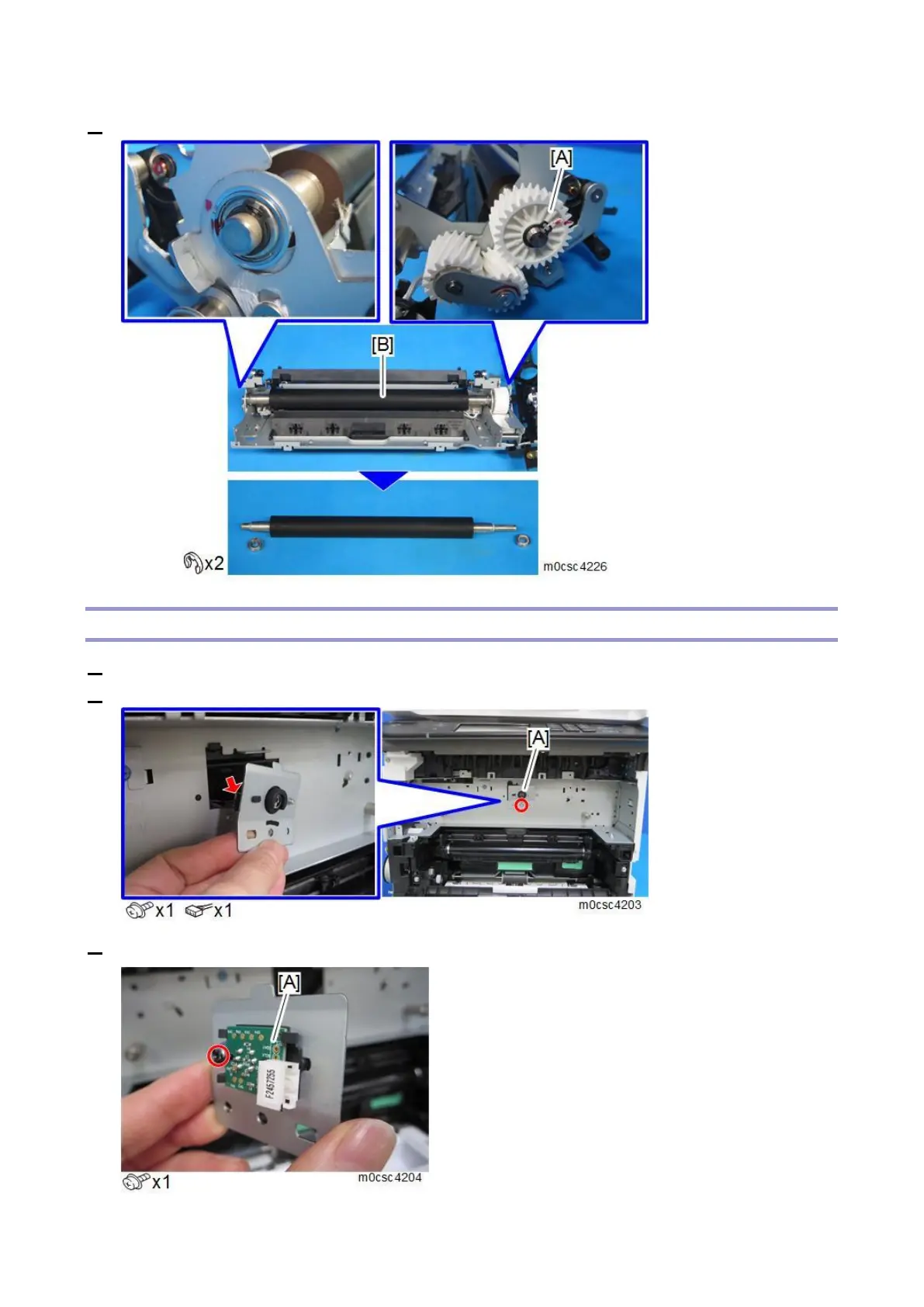

6. Remove the e-rings, gear [A], and bearings on both ends, and then remove the pressure roller [B].
Fusing Thermopile (TH2)
1. Remove the fusing unit. (Fusing Unit)
2. Remove the fusing thermopile assembly [A].
3. Remove the fusing thermopile (TH2) [A].
