Paper Feed

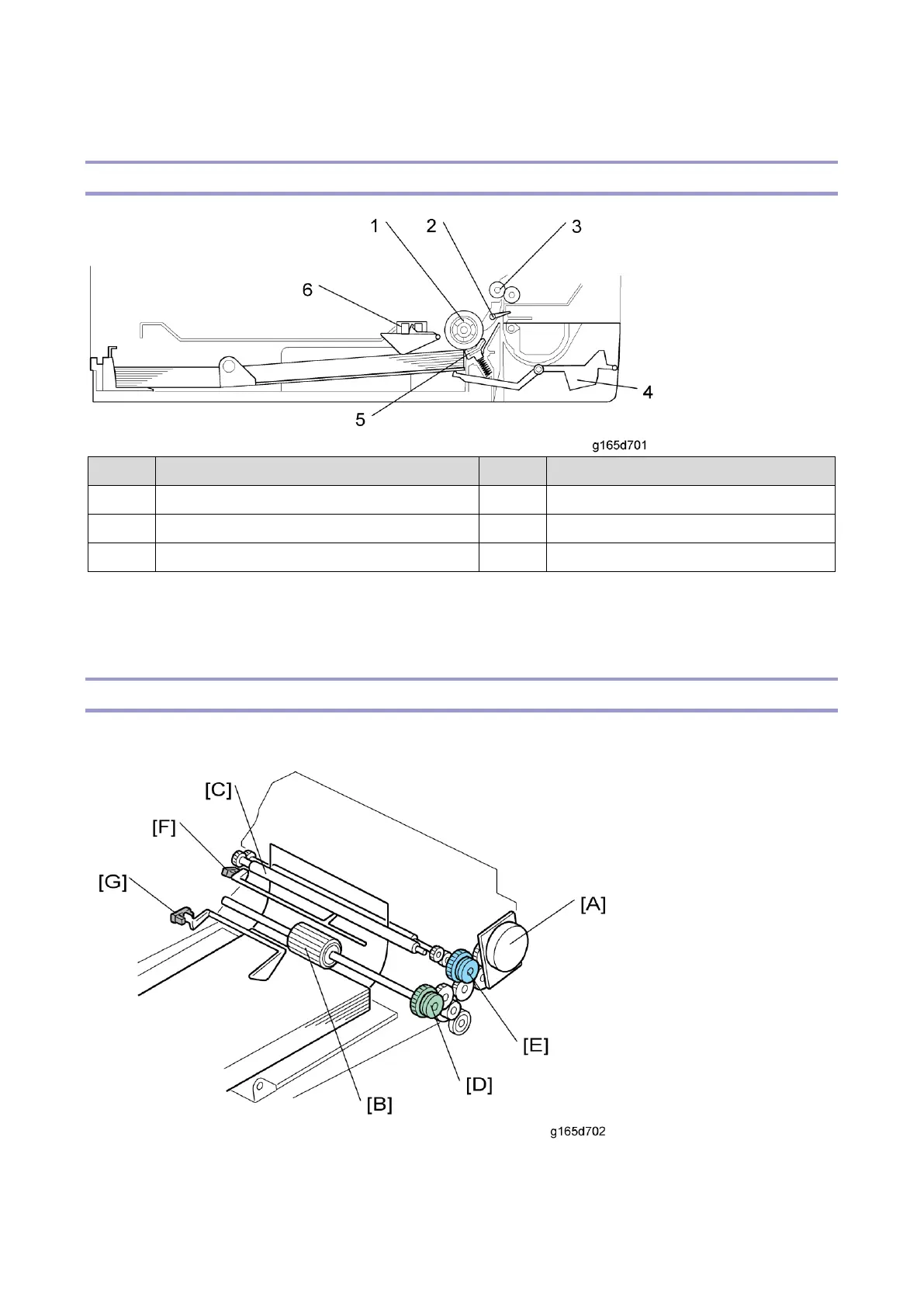

Overview
No.
Part name
No.
Part name
1
Paper feed roller
4
Paper height lever
2
Registration sensor feeler
5
Separation pad
3
Registration roller
6
Paper end sensor (S3)
This machine has a paper tray (250 sheets) and a bypass paper feed (single sheet).
The paper feed mechanism uses a friction pad system.
Mechanism
Paper Feed and Paper End Detection
The paper transport motor [A] controls the paper feed roller [B] and registration roller [C] with the paper
feed clutch [D], registration clutch [E] and gears.
