Ricoh P C300W - Pressure Roller Thermistor (Center) (TH3)

4.Replacement and Adjustment
78
(end) (TH4) [A].

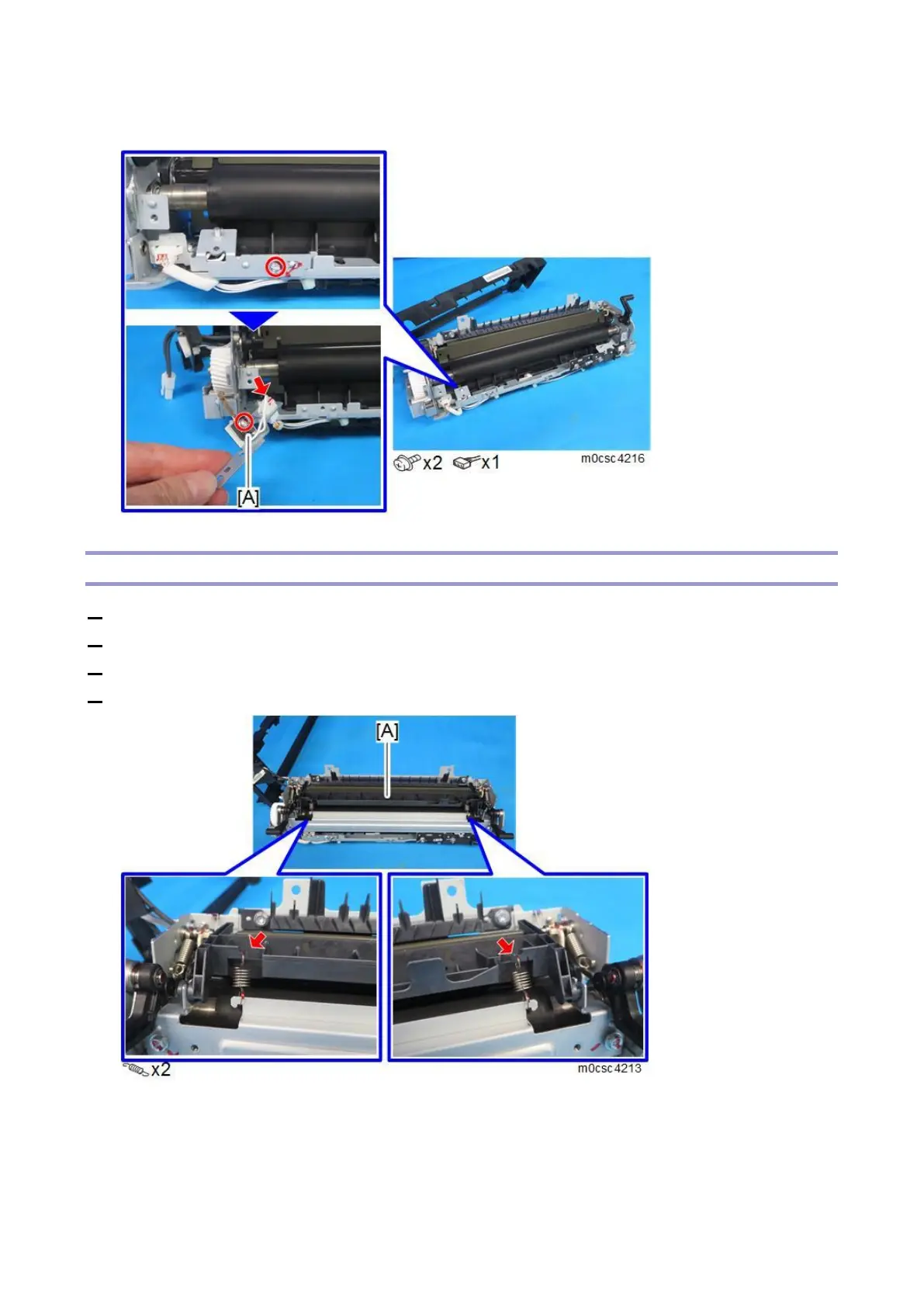

Pressure Roller Thermistor (Center) (TH3)
1. Remove the fusing unit. (Fusing Unit)
2. Remove the fusing upper cover. (Fusing Upper Cover)
3. Remove the fusing lower cover. (Fusing Lower Cover)
4. Remove the two springs on the fusing exit guide plate [A].
