Mechanism
Drive

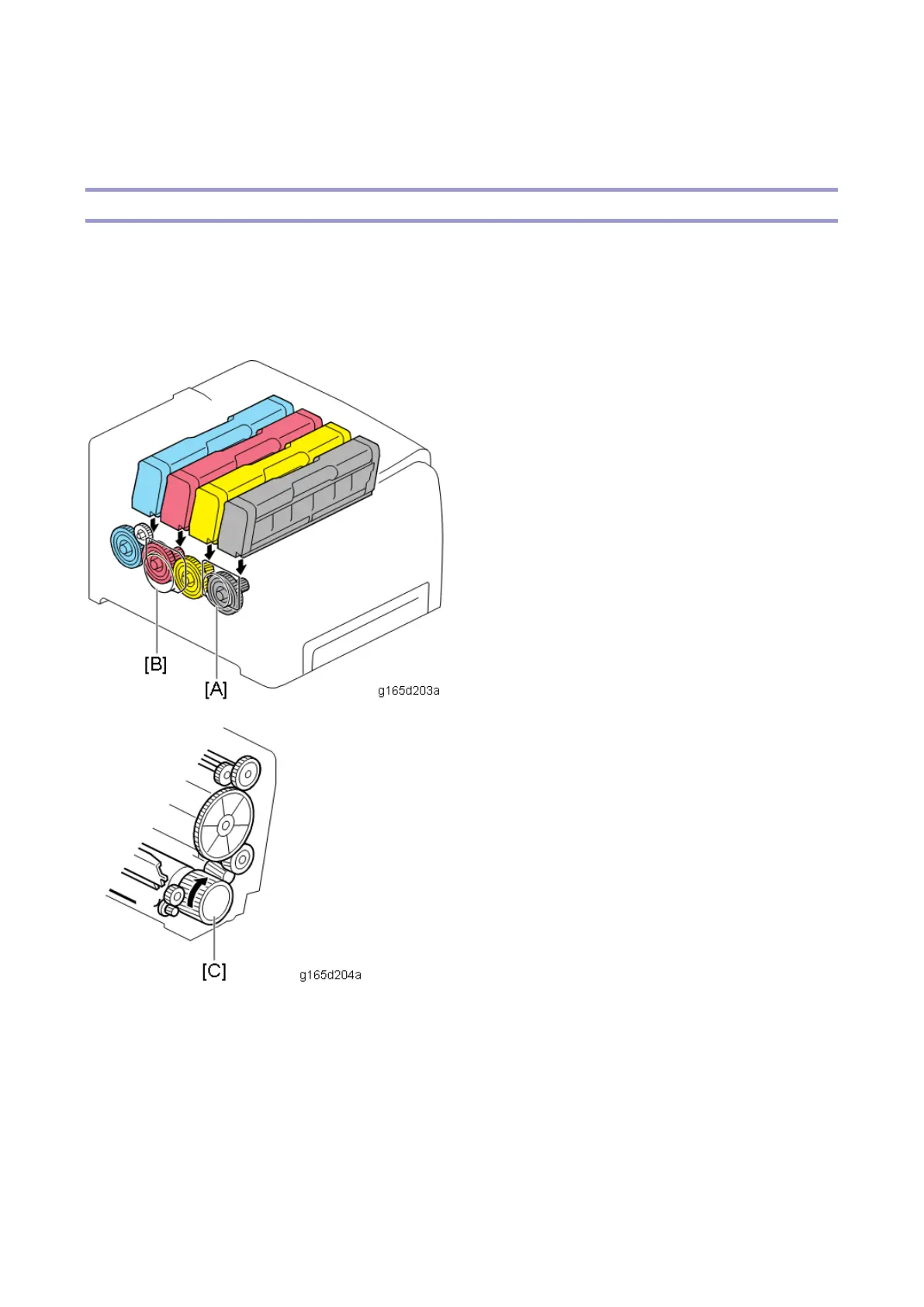

The black drum motor [A] drives the gear for the black AIO. The color drum motor [B] drives the color
gears for the cyan, magenta and yellow AIOs through gears. Each of these gears engages with a
gear [C] in the OPC, and this gear drives the rollers in the AIO through other gears.
