Ricoh P C300W - LSU Fan (FAN1); PSU Cooling Fan (FAN3)

4.Replacement and Adjustment
116

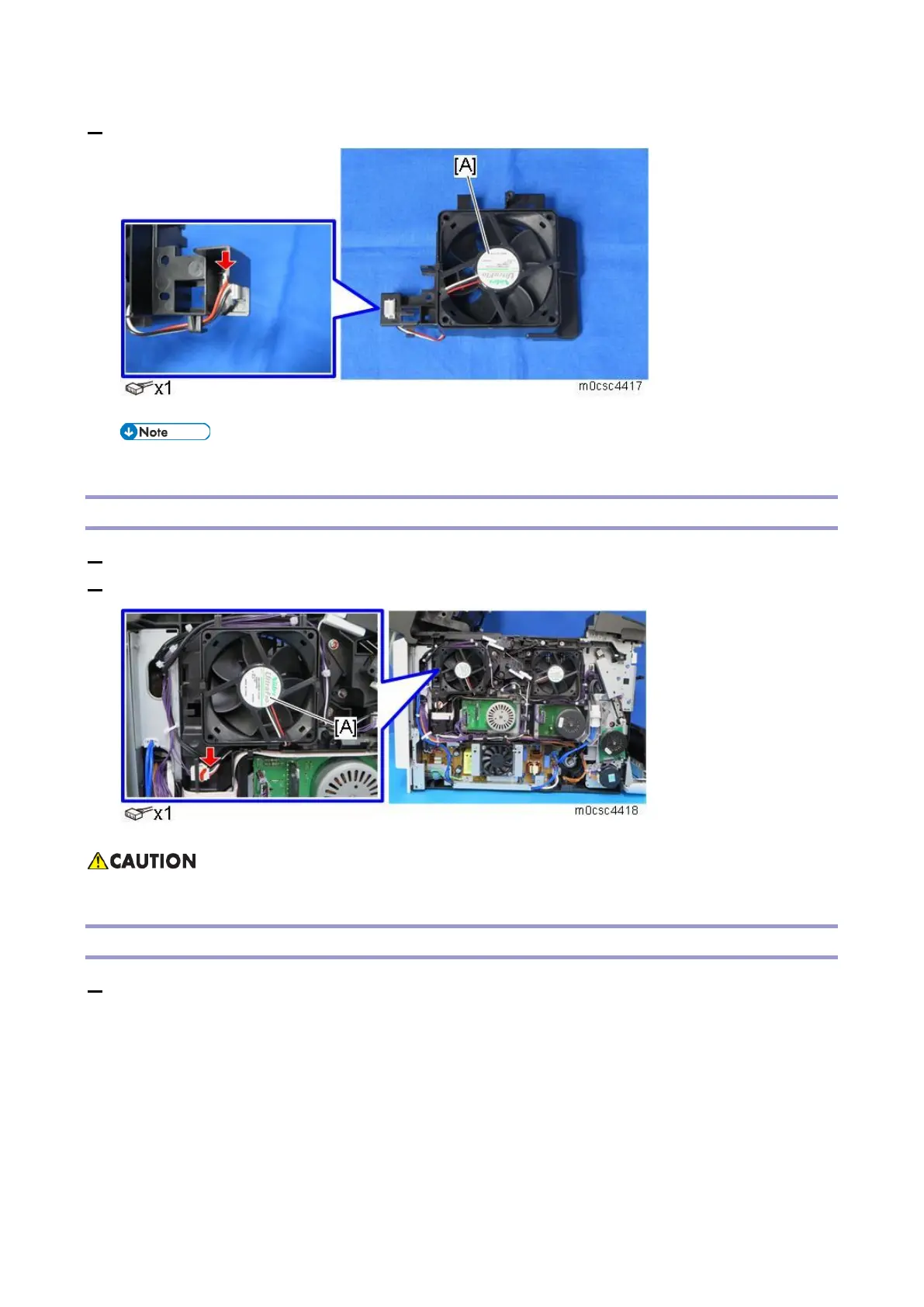

4. Remove the fusing fan (FAN2) [A].
Install the fusing fan with its decal facing out from the machine.
LSU Fan (FAN1)
1. Remove the left cover. (Left Cover)
2. Remove the LSU fan (FAN1) [A].
Install the LSU fan with its decal facing out from the machine.
PSU Cooling Fan (FAN3)
1. Remove the left cover. (Left Cover)
