Replaceable Part Hierarchy

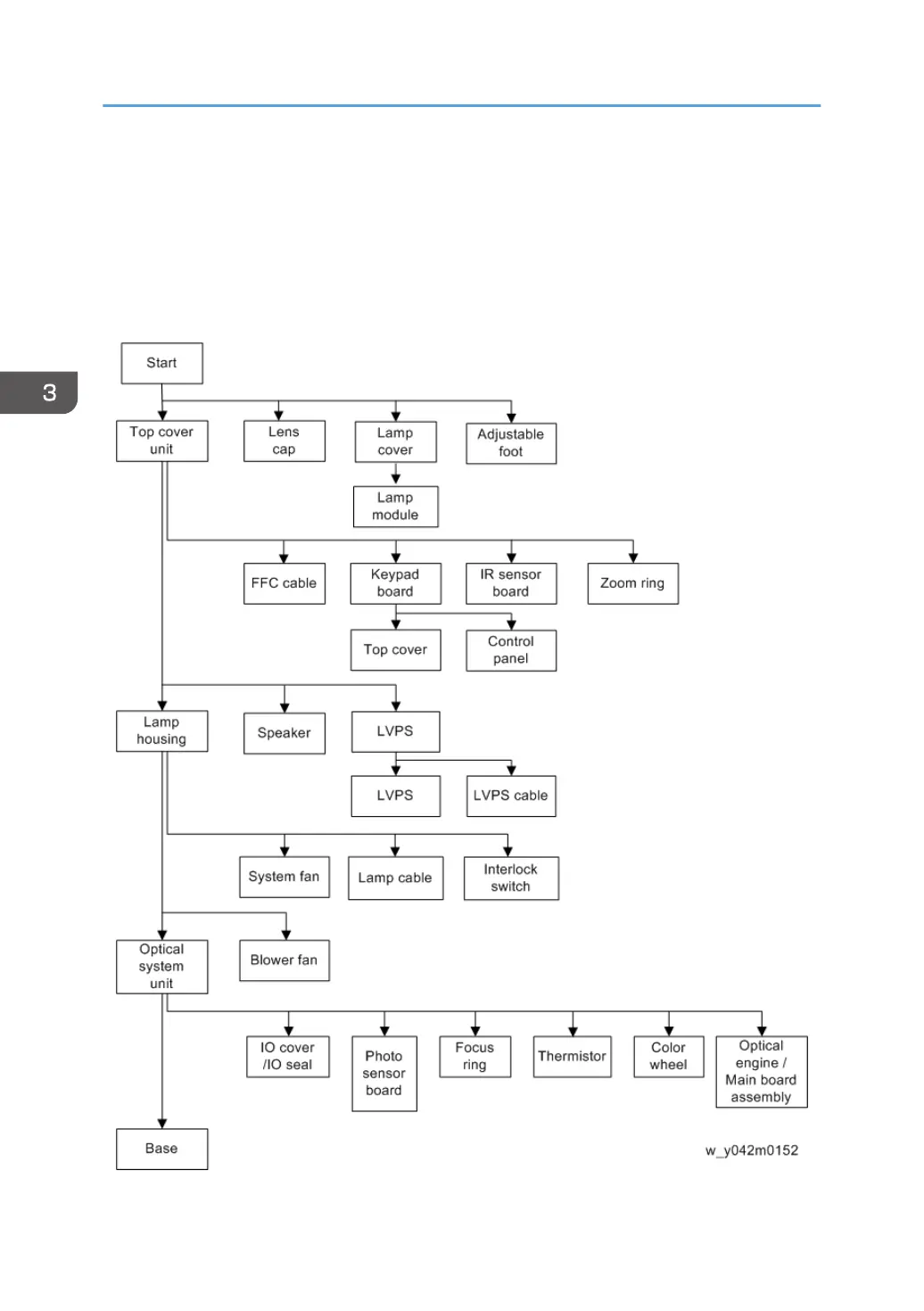

The flow chart below shows what parts must be removed to access each replaceable part in the
projector.
The parts on the first level (e.g., Lens cap) are accessible without removing any other parts.
The more levels down that a part is, the more parts you need to remove in order to access it.
3. Replacement and Adjustment
24
