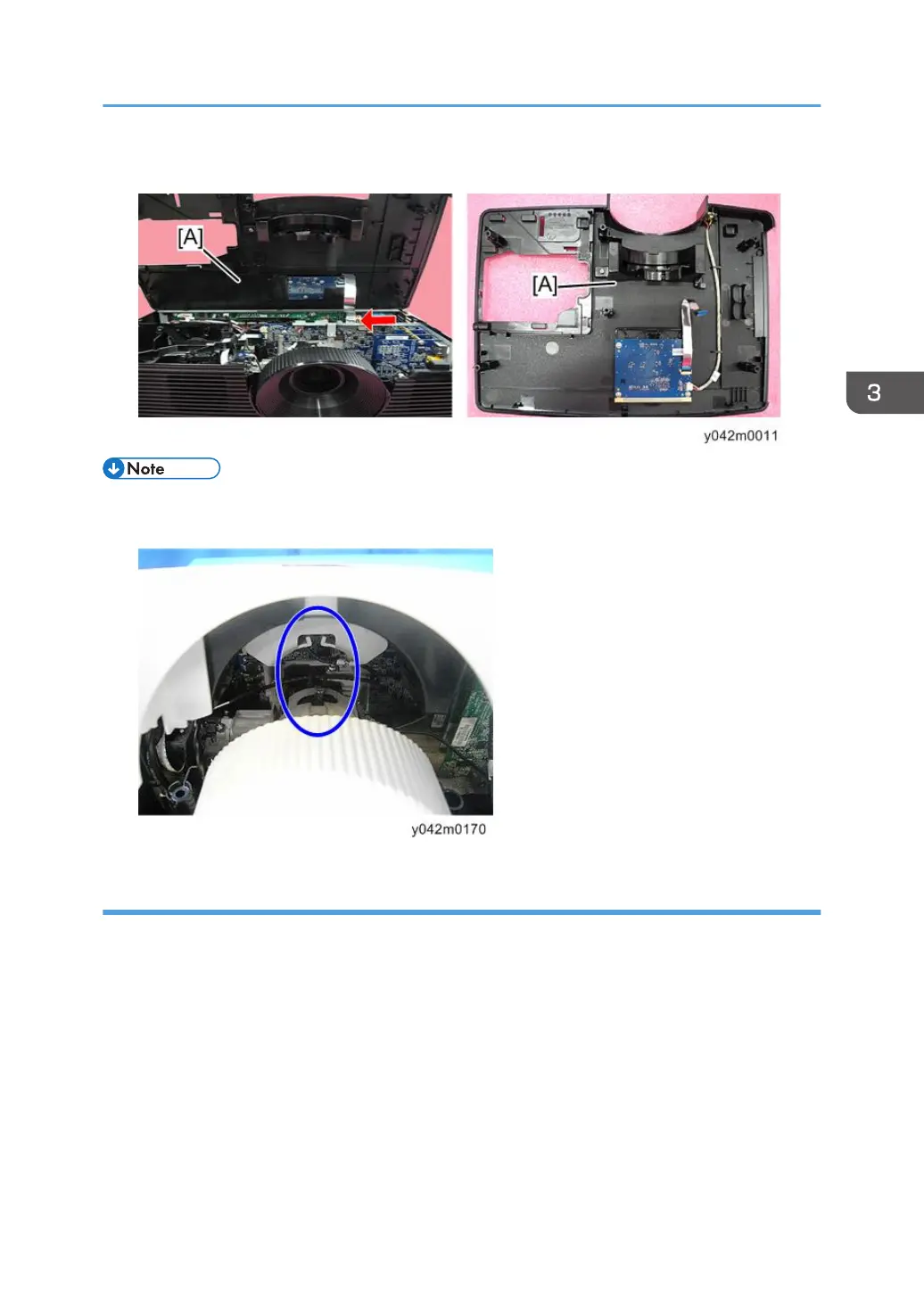

2. Unplug FFC cable and remove the top cover [A].
• Align the dent part of the zoom ring with the tab part on the optical engine side when attaching the
top cover.
Keypad board / IR sensor board
1. Top cover unit (page 26 "Top cover unit")
Part Replacement
27
