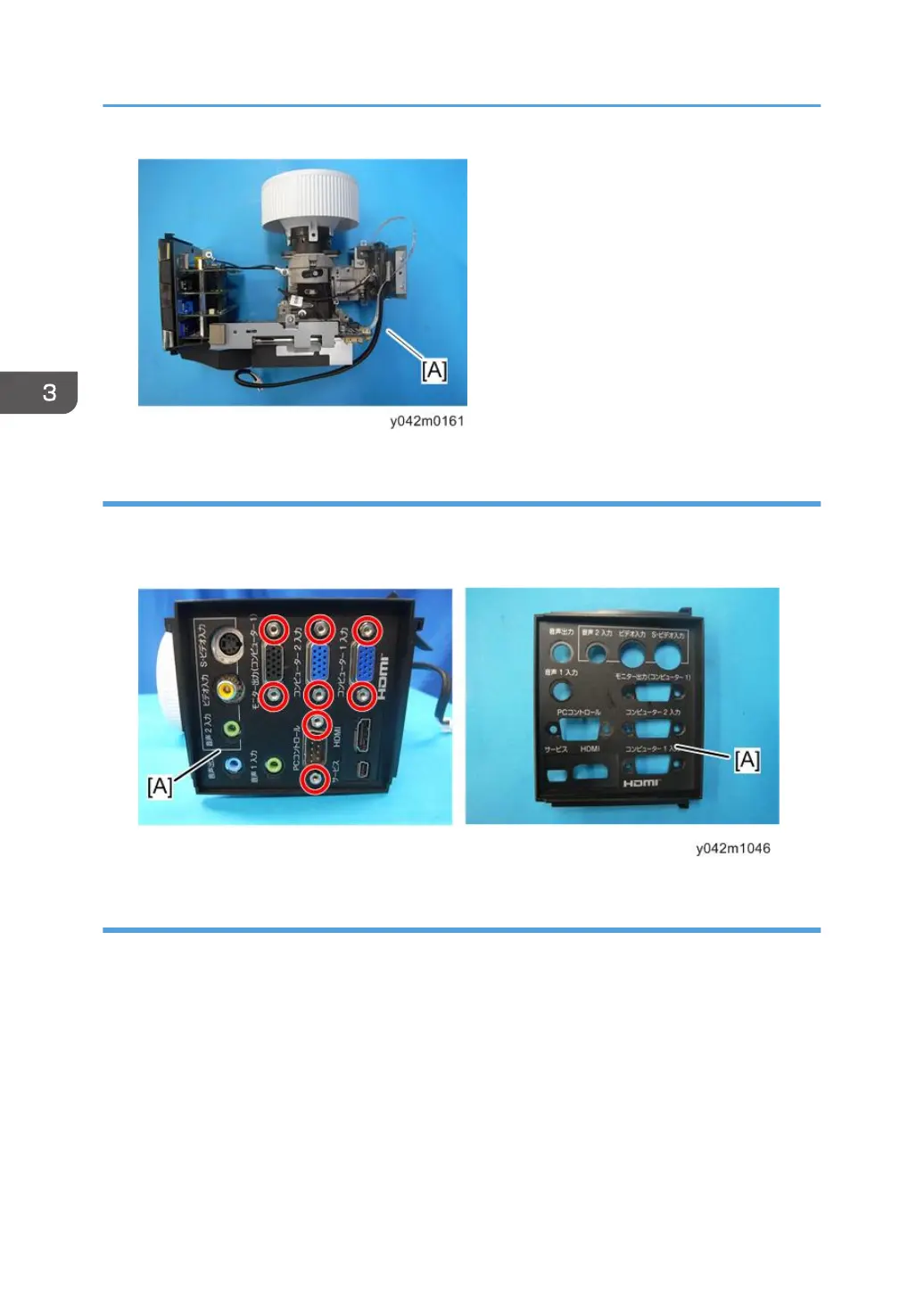

IO cover / IO seal
1. Optical system unit (page 37 "Optical system unit")
2. Remove the 8 hex screws to remove IO cover (with IO seal) [A].
Photo sensor board
1. Optical system unit (page 37 "Optical system unit")
3. Replacement and Adjustment
38
