Rod Adjustment

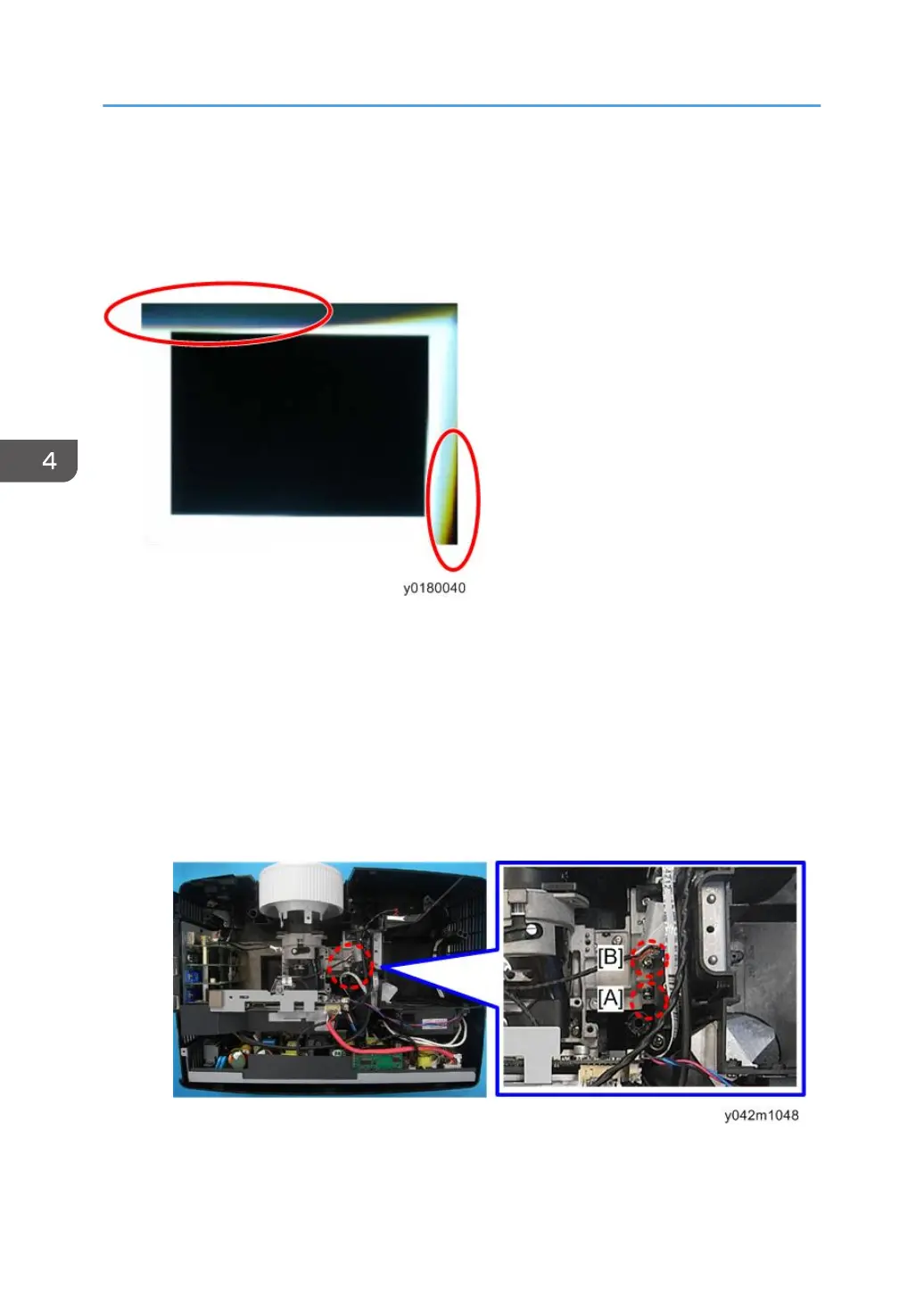

If either of the defects ringed in red appears when projecting an image, perform the adjustment
described below.
Environment
• The size of screen is 60.
• This process should be done in a dark environment (under 2 lux).
Procedure
1. Display a "white" pattern.
2. Adjust the screws to readjust the image.
Screw [A] should be adjusted first, and then Screw [B]. Adjust until the yellowish or bluish
parts disappear.
4. Troubleshooting
52
