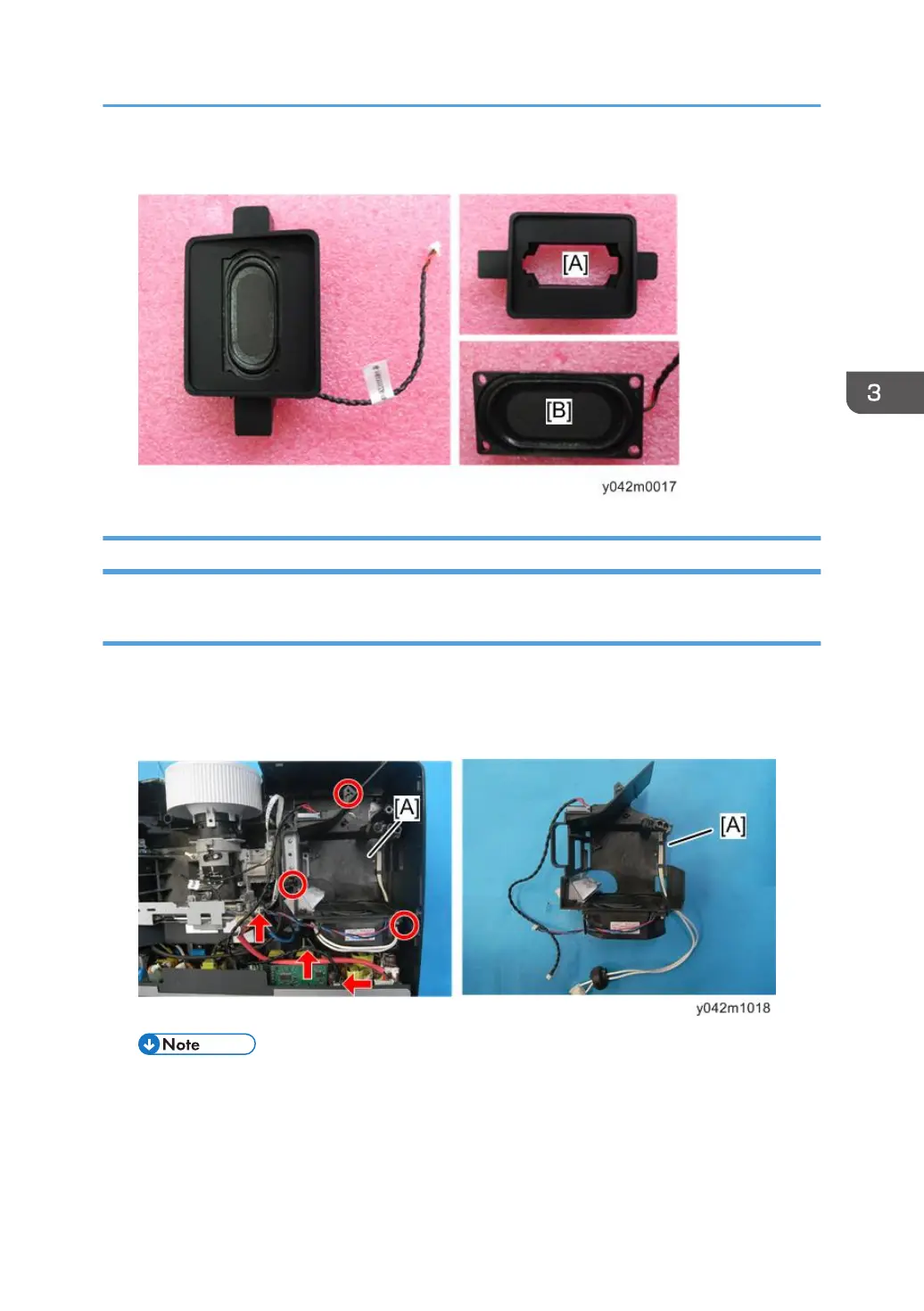

3. Separate the rubber [A] and speaker [B].
Lamp Housing
Lamp housing
1. Lamp Cover / Lamp Module (page 25 "Lamp Cover / Lamp Module")
2. Top cover unit (page 26 "Top cover unit")
3. Remove the 3 screws and the 3 connectors, and then take out the lamp housing [A].
• It is recommended to move the cable out of the way as shown by a blue circle in the following
figure when removing or attaching the lamp housing.
• Connecting the lamp cable [A] to the LVPS in advance makes it easier to attach the lamp
housing.
Part Replacement
31
